6SL3243-0BB30-1CA2

Producer:SIEMENS

Delivery term (days):5

Guarantee period:12 months

Product specifications
Digital outputs (DO)
Ethernet interface
SD card slot
Description	Control unit CU230P-2 CAN. Without a control panel (must be ordered as an accessory)
digital inputs (DIN)	6
Fail-safe digital inputs (FSDI)	0
Digital outputs (DO)	3
analog inputs (AIN)	4
analog output (AOUT)	2
Brake-Control	Brake Relay
MMC slot (MMC)	YES
Integrated pulse encoder evaluation	NO
Motor temperature sensors	PTC/KTY, Klixon
Communication, port 1 point-to-point	USS/RS232/USB
Communication, port 2 fieldbus	Canbus
Safety Integrated functions (SIF)	0
control methods	U/f lineární/kvadratické/parametrizované,FCC, vektorové bez snimače, momentové bez snímače

Compare a product

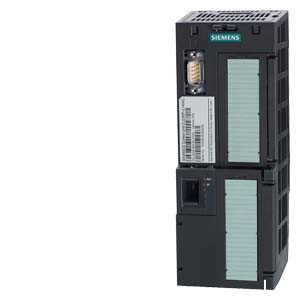

Control unit CU230P-2 DP

Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

complete catalogue: PDF Catalog D11.1 October 2010

manual: PDF CU230P-2 Operating instruction FW 4.4(ENG)

manual: PDF CU230P-2 Parameter Manual FW 4.4(ENG)

manual: PDF Basic Operator Panel 2 - Operating Instructions

Dimensions

Description

Controlling of the motor according to the various control procedures is executed via the control unit. Apart from the control unit, further functions are available which can be adjusted by parameterization to the corresponding application. In the case of SINAMICS G120, several control units are available in various designs. The specific control unit (CU230P-2) is ideal for the use with drives with integrated technology functions for pump, fan and compressor applications. The I/O interface, the fieldbus interfaces and the additional software functions optimally support these applications.

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	6SL3252-0BB00-0AA0	Brake Relay. Including cable harness for connection to the Power Module;	50,99 EUR	Detail - 6SL3252-0BB00-0AA0
	6SL3254-0AM00-0AA0	MMC memory card;	35,55 EUR	Detail - 6SL3254-0AM00-0AA0
	6SL3255-0AA00-2CA0	Sinamics - PC connection kit (USB);	25,13 EUR	Detail - 6SL3255-0AA00-2CA0
	6SL3255-0AA00-4HA0	IOP Handheld. Included in the scope of delivery:IOP,Handheld housing,Rechargeable batteries(4×AA),Charging unit(international),RS232 connecting cable (3m long, can only be used for SINAMICS G120 and SIMATIC ET 200S FC), USB cable (1 m long).For CU240E .. , CU240S .. required 6SL3255-0AA00-2AA1(see a;	201,08 EUR	Detail - 6SL3255-0AA00-4HA0
	6SL3255-0AA00-4JA0	Intelligent operator panel IOP;	107,73 EUR	Detail - 6SL3255-0AA00-4JA0
	6SL3256-0AP00-0JA0	IOP Door Mounting Kit;	21,54 EUR	Detail - 6SL3256-0AP00-0JA0
	6SL3264-1EA00-0FA0	Shield Connection Kit, for CU230P-2 Control Units;	10,67 EUR	Detail - 6SL3264-1EA00-0FA0
	Potenciometr 5kOhm + knoflík	;	2,46 EUR	Detail - Potenciometr 5kOhm + knoflík

Configuration code: 6SL3243-0BB30-1CA2

Standard delivery term: 5

Price: 227,53EUR | Price incl. VAT: 273,04EUR (Basic price excl. VAT227,53EUR)

Your price includes a discount of 12 % from the recommended price 258,56 EUR Excluding VAT.
