LOGO! 24 Co - Elektromotory.cz

Delivery term (days):7

Guarantee period:12 months

Product specifications
Description	LOGO! 24 Co
Supply voltage	24V DC
Permissible range (V)	20,4 - 28,8 DC
Short-circuit protection	Yes; electrical (1 A)
digital inputs (DIN)	8; of which 4 can be used as analog (0...10V)
Digital outputs (DO)	4
Switching capacity of the contacts	0,3A with resistive load
Integrated display (Display)	NO
Integrated operator panel (OP panel)	NO
Real time clock (clock)	YES
protection	IP20
Mounting	35mm DIN rail
Ethernet interface	NO
SD card slot	NO

Compare a product

LOGO! PURE

Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

Production datasheet: PDF 6ED1052-2CC01-0BA6 (EN)

complete catalogue: PDF Products for Totally Integrated Automation and Micro Automation (EN

manual: PDF LOGO! 0BA6 Manual (CZ)

manual: PDF LOGO! 0BA6 Manual (EN)

circuit diagram: PDF LOGO! installing and connecting (EN)

manual: PDF LOGO!Soft Comfort V6.0 (EN)

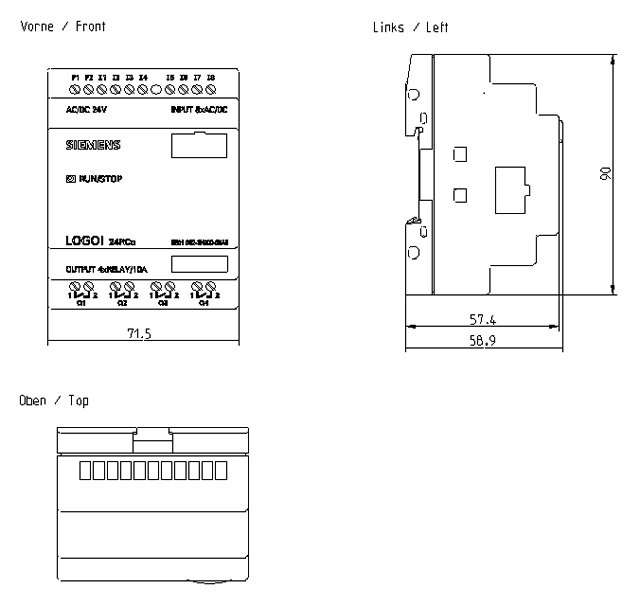

Dimensions

6ED1052-2CC01-0BA6

Description

LOGO! offers solutions for domestic and installation engineering applications such as stairway lighting, external lighting, sun blinds, shutters, shop window lighting and more; switch cabinet engineering, as well as for mechanical and apparatus engineering such as gate control systems, air-conditioning systems, rand ainwater pumps. LOGO! can also be implemented for special control systems in conservatories or greenhouses, for control signal processing and, by connecting a communication module such as an AS--i module, for distributed local controlling of machines and processes. Special versions without operator panel and display unit are available for series production applications in small machine, apparatus, switching cabinet and installation engineering.
LOGO! is a universal logic module made by Siemens that integrates:
• Controls
• Operator and display panel with background lighting
• Power supply
• Interface for expansion modules
• Interface for the memory card, battery card, combined memory/battery card or a PC cable
• Interface for an optional text display (TD) module
• Pre-configured standard functions, for example, on- and off-delays, pulse relay and softkey
• Timers
• Digital and analog flags
• Inputs and outputs, according to the device type
LOGO! Basic is available in two voltage classes:
• Class 1 ? 24 V, i.e. 12V DC, 24V DC, 24V AC
• Class 2 > 24 V, i.e. 115...240 V AC/DC
LOGO! Basic is available in two versions:
• With display: 8 inputs and 4 outputs
• Without display (”LOGO! Pure”): 8 inputs and 4 outputs
Each version is integrated into four subunits, is equipped with an expansion interface and LOGO! TD interface and provides 39 pre-configured standard and special function blocks for the creation of your circuit program.

Configuration code: 6ED1052-2CC01-0BA6

Standard delivery term: 7

Price: 83,60EUR | Price incl. VAT: 100,32EUR (Basic price excl. VAT83,60EUR)

Your price includes a discount of 5 % from the recommended price 88,00 EUR Excluding VAT.

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	LOGO!CM ASI	LOGO!CM AS Interface; 30V DC; 4DIN; 4DO; NoAIN; NoAOUT;	81,99 EUR	Detail - LOGO!CM ASI
	LOGO! čelní rámeček	FRONT PANEL MOUNTING KIT 4 PU FOR LOGO! + SIPLUS ADDITIONS;	40,85 EUR	Detail - LOGO! čelní rámeček
	LOGO! čelní rámeček	FRONT PANEL MOUNTING KIT 8 PU FOR LOGO! + SIPLUS ADDITIONS;	69,35 EUR	Detail - LOGO! čelní rámeček
	LOGO! čelní rámeček	FRONT PANEL MOUNTING KIT 8 PU WITH KEYS FOR LOGO! + SIPLUS ADDITIONS;	76,00 EUR	Detail - LOGO! čelní rámeček
	LOGO! Prom	LOGO! PROM V6 100...230VAC 50/60HZ PROGRAMMING DEVICE;	328,70 EUR	Detail - LOGO! Prom
	LOGO!CM EIB/KNX	LOGO!CM EIB/KNX; 24V AC/DC; virtual max. 16DIN; virtual max. 12DO; virtual max. 8AIN; virtual max. 2AOUT;	141,55 EUR	Detail - LOGO!CM EIB/KNX
	LOGO! DM8 24	LOGO! DM8 24; 24V DC; 4DIN; 4 (Tranzistor)DO; IP20;	55,10 EUR	Detail - LOGO! DM8 24
	LOGO! DM16 24	LOGO! DM16 24; 24V DC; 8DIN; 8 (Tranzistor)DO; IP20;	89,30 EUR	Detail - LOGO! DM16 24
	LOGO! DM8 24R	LOGO! DM8 24R; 24V AC/DC; 4 (optional PNP,NPN)DIN; 4 (Relay)DO; IP20;	59,85 EUR	Detail - LOGO! DM8 24R
	LOGO! AM2	LOGO! AM2; 12/24V DC; 2 (unipolar)AIN; 0 ... 10V DC or 0 ... 20mA; IP20;	72,20 EUR	Detail - LOGO! AM2
	LOGO! DM8 12/24 R	LOGO! DM8 12/24 R; 12/24V DC; 4DIN; 4 (Relay)DO; IP20;	59,85 EUR	Detail - LOGO! DM8 12/24 R
	LOGO! AM2 RTD	LOGO! AM2 RTD; 12/24V DC; 2; Resistance thermometer Pt100,Pt1000; -50 ... 200°C; IP20;	87,40 EUR	Detail - LOGO! AM2 RTD
	LOGO! AM2 AQ	LOGO! AM2 AQ; 24V DC; 0AIN; 0 ... 10V DC, 0/4 ... 20mA; IP20;	103,55 EUR	Detail - LOGO! AM2 AQ
	LOGO! DM16 24R	LOGO! DM16 24R; 24V DC; 8DIN; 8 (relay)DO; IP20;	96,90 EUR	Detail - LOGO! DM16 24R
	LOGO! TD	4-line text display, can be connected to all LOGO! 0BA6 Basic and Pure versions, including connecting cable;	123,50 EUR	Detail - LOGO! TD
	Paměťový modul pro LOGO!	LOGO! MEMORY CARD DUPLICATING AND/OR KNOW HOW PROTECTION OF LOGO!;	17,10 EUR	Detail - Paměťový modul pro LOGO!
	Bateriový modul pro LOGO!	LOGO! BATTERY CARD BUFFERING OF REAL TIME CLOCK UP TO 2 YEARS;	17,10 EUR	Detail - Bateriový modul pro LOGO!
	Kombinovaný modul pro LOGO!	LOGO! MEMORY/BATTERY CARD DUPLICATING AND/OR KNOW HOW PROTECTION OF LOGO! PROGRAM, BUFFERING OF REAL TIME CLOCK UP TO 2 YEARS;	27,55 EUR	Detail - Kombinovaný modul pro LOGO!
	LOGO! - PC kabel	LOGO! PC CABLE, F. THE TRANSMISSION OF PROGRAMS FROM PC TO LOGO! AND VICE VERSA;	71,25 EUR	Detail - LOGO! - PC kabel
	USB LOGO! - PC kabel	LOGO! USB PC CABLE FOR PROGRAM TRANSMITTING FROM PC TO LOGO! AND VICE VERSA DRIVER ON CD-ROM INCLUDED;	71,25 EUR	Detail - USB LOGO! - PC kabel
	LOGO! Soft Comfort V7	LOGO! SOFT COMFORT V6.0, SINGLE LICENSE FOR 1 INSTALLATION;	46,55 EUR	Detail - LOGO! Soft Comfort V7
