LOGO! DM8 24R - Elektromotory.cz

Delivery term (days):7

Guarantee period:12 months

Product specifications
Description	LOGO! DM8 24R
Supply voltage	24V AC/DC
digital inputs (DIN)	4 (optional PNP,NPN)
Digital outputs (DO)	4 (Relay)
Short-circuit protection	-
Reverse polarity protection	NE
protection	IP20

Compare a product

LOGO! DM8 24R

Configuration

Documentation

Description

Dimensions

Accessories

Product configuration (voluntary options):

The product can not be configured.

Documentation

Production datasheet: PDF 6ED1055-1HB00-0BA0 (EN)

complete catalogue: PDF Products for Totally Integrated Automation and Micro Automation (EN

manual: PDF LOGO! 0BA6 Manual (CZ)

manual: PDF LOGO! 0BA6 Manual (EN)

circuit diagram: PDF expansions modules - installing and connecting (EN)

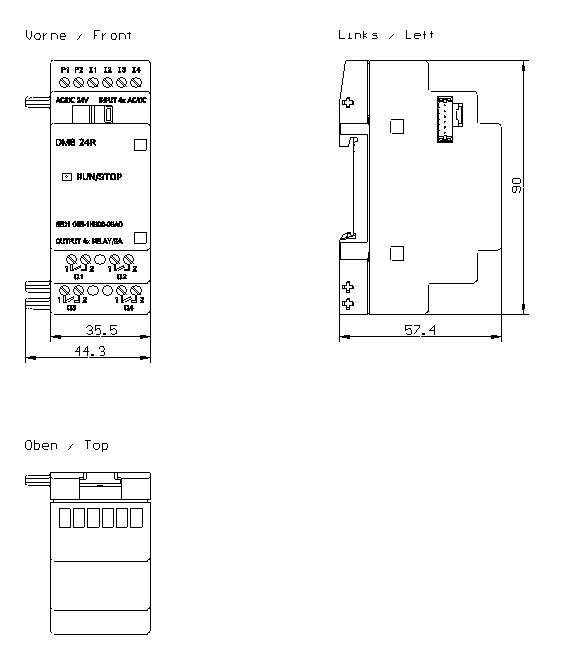

Dimensions

6ED1055-1HB00-0BA0

Description

•LOGO! digital modules DM8... are available for operation with 12V DC, 24V AC/DC and 115...240V AC/DC, and are equipped with four inputs and four outputs.
•LOGO! digital modules DM16... are available for operation with 24V DC and 115...240V AC/DC, and are equipped with eight inputs and eight outputs.
•LOGO! analog modules are available for operation with 24V DC and some with 12V DC, depending on the specific module.Each is equipped with two analog inputs, two Pt100 inputs or two analog outputs.
•The digital/analog modules are integrated in two or four subunits. Each one is equipped with two expansion interfaces for connecting additional modules.

LOGO! Basic may only be equipped with expansion modules of the same voltage class. Mechanical encoding pins in the housing prevent you from connecting devices of a different voltage class. Exception: The left-hand interface of an analog module or communication module is galvanically isolated. This type of expansion module can therefore be connected to devices of a different voltage class.

Configuration code: 6ED1055-1HB00-0BA0

Standard delivery term: 7

Price: 59,85EUR | Price incl. VAT: 71,82EUR (Basic price excl. VAT59,85EUR)

Your price includes a discount of 5 % from the recommended price 63,00 EUR Excluding VAT.

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	LOGO!CM ASI	LOGO!CM AS Interface; 30V DC; 4DIN; 4DO; NoAIN; NoAOUT;	81,99 EUR	Detail - LOGO!CM ASI
	LOGO!CM EIB/KNX	LOGO!CM EIB/KNX; 24V AC/DC; virtual max. 16DIN; virtual max. 12DO; virtual max. 8AIN; virtual max. 2AOUT;	141,55 EUR	Detail - LOGO!CM EIB/KNX
	LOGO! DM8 24	LOGO! DM8 24; 24V DC; 4DIN; 4 (Tranzistor)DO; IP20;	55,10 EUR	Detail - LOGO! DM8 24
	LOGO! DM16 24	LOGO! DM16 24; 24V DC; 8DIN; 8 (Tranzistor)DO; IP20;	89,30 EUR	Detail - LOGO! DM16 24
	LOGO! DM8 24R	LOGO! DM8 24R; 24V AC/DC; 4 (optional PNP,NPN)DIN; 4 (Relay)DO; IP20;	59,85 EUR	Detail - LOGO! DM8 24R
	LOGO! AM2	LOGO! AM2; 12/24V DC; 2 (unipolar)AIN; 0 ... 10V DC or 0 ... 20mA; IP20;	72,20 EUR	Detail - LOGO! AM2
	LOGO! DM8 12/24 R	LOGO! DM8 12/24 R; 12/24V DC; 4DIN; 4 (Relay)DO; IP20;	59,85 EUR	Detail - LOGO! DM8 12/24 R
	LOGO! AM2 RTD	LOGO! AM2 RTD; 12/24V DC; 2; Resistance thermometer Pt100,Pt1000; -50 ... 200°C; IP20;	87,40 EUR	Detail - LOGO! AM2 RTD
	LOGO! AM2 AQ	LOGO! AM2 AQ; 24V DC; 0AIN; 0 ... 10V DC, 0/4 ... 20mA; IP20;	103,55 EUR	Detail - LOGO! AM2 AQ
	LOGO! DM16 24R	LOGO! DM16 24R; 24V DC; 8DIN; 8 (relay)DO; IP20;	96,90 EUR	Detail - LOGO! DM16 24R
