6EP1351-1SH03

Product configuration (voluntary options):

The product can not be configured.

Documentation

Production datasheet: PDF 6EP1351-1SH03 (EN)

complete catalogue: PDF Products for Totally Integrated Automation and Micro Automation (EN

manual: PDF LOGO! 0BA6 Manual (CZ)

manual: PDF LOGO! 0BA6 Manual (EN)

manual: PDF LOGO! Power manual (EN)

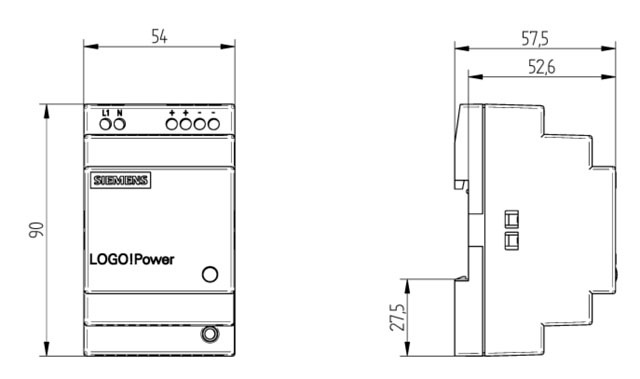

Dimensions

Description

The innovated single-phase power supplies LOGO!Power are released for delivery with immediate effect.
The innovated power supply line LOGO!Power offers more functionality at constant prices with full compatibility to the preceding products. The energy efficiency of the power supplies has improved significantly. Further important new features are the possiblity of operation at direct voltage networks and an expanded temperature range.
Product highlights
The innovated products feature the following characteristics:
Wide-range input for voltages AC 85 up to 264 V
NEW: operation at direct voltage from DC 110...300 V
3 power classes up to 4 A with 24 V, 2 power classes with 5 V, 12 V and 15 V
Flat stepped profile with mounting widths of only 54 mm, 72 mm or 90 mm
Layout and design optimally matching with logic modules LOGO!
Regulated output voltage for reliable supply of connected consumer loads
Adjustment range of outtput voltage up to 26.4 V (24 V versions, 5.4 V (5 V versions), 16.1 V (12 V versions) and 16.1 V (15 V versions) for compensation of voltage drops
High efficiency up to 89 %
NEW: High efficiency of power supply also at loads below rated values (partial-load range)
NEW: Reduction of no-load losses by 50 % to < 2 W (standby)
Constant current in the event of overload for reliable switching-on of difficult loads
NEW: power reserve of 150 % of rated current for typ. 200 ms at start-up of power supply
Parallel connection for more power
LED display for safe identification of operating state
NEW: Expanded operation temperature range of -20 °C bis +70 °C (preceding products up to +55°C)
Comprehensive certification according to CE, UL/cUL, ATEX, FM, shipbuilding

Customer benefits
Particularly suited for use in small distribution boards, flat control boxes, control panels or wall-mount boxes thanks to flat stepped profile
Functionality and design optimally matching with logic modules LOGO!
Worldwide use thanks to wide-range input 85 – 265 V AC for connection to single-phase networks 120 V and 230 V AC without switchover, gain in reliability and system stability by the possibility of voltage supply with stable DC voltage in the range of 110 … 300 V DC
Low heat losses through high efficiency
Low energy consumption because of high efficiency across the whole load range and low losses in no-load operation (standby)
Reliable switching-on of difficult loads thanks to constant current characteristic
Reliable switching-on of connected capacitive loads by power reserve of power supply at start-up
Adjustable output voltage for compensation of voltage drops
Use under different climatic conditions - operating temperature range -20 °C to 70 °C
Perfectly suited for exports thanks to an international package of certificates

Application areas (branches)
Small machine building
Building technology
Traffic, infrastructure, logistics
Environmental technology
Private applications (hobbies)

Substitution and compatibility The new products completely substitute the preceding versions after consumption of stocks.
Therefore the innovated LOGO!Power can be used in existing applications with LOGO!Power. The enhanced functionalities over the existing products (like better efficiency, lower no-load losses, operation at DC voltage networks, expanded temperature range, power reserve at start-up of power supply) are additional customer benefits.
