6SL3210-1KE18-8 - Elektromotory.cz

Delivery term (days):7

Guarantee period:12 months

Product specifications
power (kW)	4
input voltage (V)	3 x 380-480V, 50/60 Hz
Output current HO (A)	7,3
Output current LO (A)	8,8
Overload HO	2.0 x IH for 3 s and then 1.5 x IH for 57 s in a 300 s cycle
Overload LO	1.5 x IL for 3 s and then 1.1 x IL for 57 s in a 300 s cycle
digital inputs (DIN)	6
Safety Integrated functions (SIF)	1 - STO
analog inputs (AIN)	1
Digital outputs (DO)	2
analog output (AOUT)	1
control methods	U/f, U/f ECO, vektor
communication interf	optional USS/Modbus RTU / PROFIBUS DP / CANopen
Size	FSA
protection	IP20
Description	Special offer valid until further notice: Control panel BOP-2 for free

Compare a product

G120C FSA

Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

EMC filter

	A - integrated filter Class A	70,40 EUR
	U - without EMC filter	0,00 EUR

Integrated communication interface

	B0 - RS485 with USS, Modbus RTU	0,00 EUR
	C0 - SUB-D with CANopen	49,28 EUR
	P0 - SUB-D with PROFIBUS-DP	35,20 EUR

Documentation

manual: PDF Intelligent Operator Panel Operating Instructions

complete catalogue: PDF G120C - Brochure (CZ)

complete catalogue: PDF G120C - Brochure (ENG)

complete catalogue: PDF G120C - Catalogue D31 (DE)

manual: PDF G120C - Getting Started (CZ)

manual: PDF G120C - Getting Started (ENG)

manual: PDF G120C - Operating Instructions (ENG)

manual: PDF G120C - Parameter Manual (ENG)

manual: PDF Basic Operator Panel 2 - Operating Instructions

Dimensions

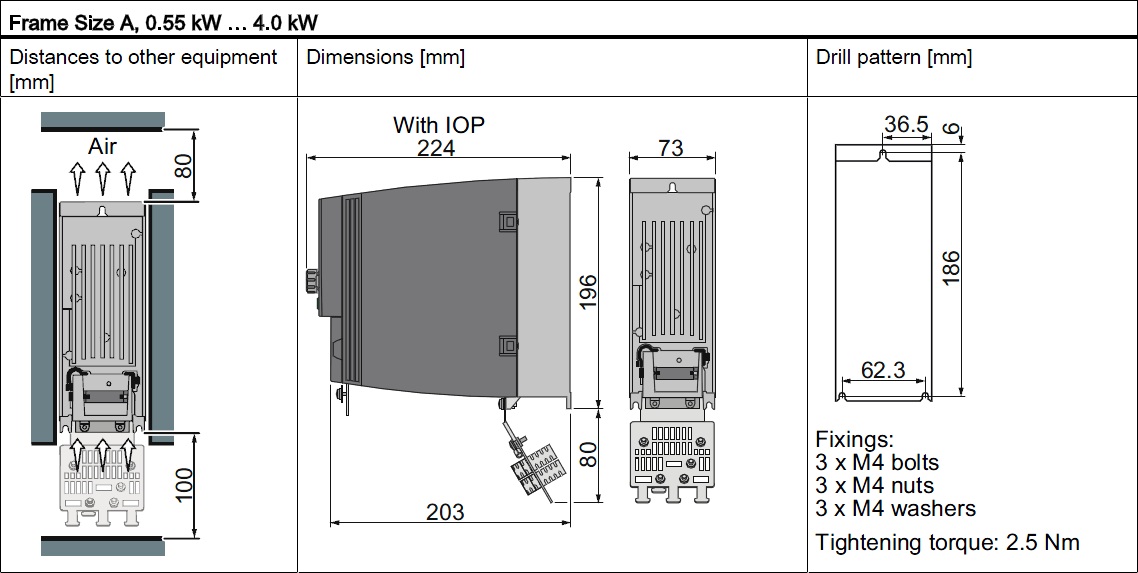

G120C FSA - dimensions

Description

SINAMICS G120C

SINAMICS G120C has been especially designed for machine manufacturers who are looking for an economic, space-saving and easy-to-operate frequency converter providing a multitude of functions. This device combines in particular compactness with superior power density and is characterized by fast installation and commissioning, user-friendly connections resp. easy-to-use commissioning tools.
With its three frame sizes, it covers a performance range of 0.55 kW to 18.5 kW. The energy-efficient device serves the most common communication interfaces and is an integral part of Totally Integrated Automation. SINAMICS G120C – a brief Summary of its Strengths
Smallest size
Compact, small drive, high power density
fast mechanical installation (i.e. pluggable terminals)
Side-by-side mounting without derating
Easy to use
Simple, optimized commissioning
Effective, adequate parameter set (simple storing and cloning)
Usable with IOP, BOP-2 panels and USB connection
Energy-efficient, encoderless vector control - automatic flow reduction with V/F ECO
Safety (STO) included with no extra costs
Profibus, CAN, Modbus RTU and USS available

SINAMICS G120C – Typical Uses
Machine building; also for use in numerous further applications – for example, in mixers, conveyors, fans, pumps, compressors or basic production machines.

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	6SL3201-0BE21-0AA0	SINAMICS braking resistor R=140 OHM P rated=200W, P max=4000W/12S/5% duty, standalone;	84,48 EUR	Detail - 6SL3201-0BE21-0AA0
	6SL3203-0CE21-0AA0	SINAMICS LINE REACTOR 380-480V 3AC 47-63HZ I_LN = 11,3A STANDALONE;	56,32 EUR	Detail - 6SL3203-0CE21-0AA0
	6SL3254-0AM00-0AA0	MMC memory card;	35,55 EUR	Detail - 6SL3254-0AM00-0AA0
	6SL3255-0AA00-4CA1	SINAMICS G120 BASIC OPERATOR PANEL (BOP-2);	26,94 EUR	Detail - 6SL3255-0AA00-4CA1
	6SL3255-0AA00-4HA0	IOP Handheld. Included in the scope of delivery:IOP,Handheld housing,Rechargeable batteries(4×AA),Charging unit(international),RS232 connecting cable (3m long, can only be used for SINAMICS G120 and SIMATIC ET 200S FC), USB cable (1 m long).For CU240E .. , CU240S .. required 6SL3255-0AA00-2AA1(see a;	201,08 EUR	Detail - 6SL3255-0AA00-4HA0
	6SL3255-0AA00-4JA0	Intelligent operator panel IOP;	107,73 EUR	Detail - 6SL3255-0AA00-4JA0
	6SL3256-0AP00-0JA0	IOP Door Mounting Kit;	21,54 EUR	Detail - 6SL3256-0AP00-0JA0

Configuration code: 6SL3210-1KE18-8

Standard delivery term: 7

Price: 471,68EUR | Price incl. VAT: 566,02EUR (Basic price excl. VAT471,68EUR)

Your price includes a discount of 12 % from the recommended price 536,00 EUR Excluding VAT.
