1LG4223-6AA

Producer:SIEMENS


Delivery term (days):1 Guarantee period:12 months

Product specifications
power (kW)30
speed (rpm)978
efficiencyEFF2
number of poles (pole)6
motor housinglitina/cast iron
protectionIP55
motor frame size225M
insulation classF
basic voltage (V)400/690V D/Y 50Hz,460V D 60Hz
rated imput current (A)57/33,04
output torque (Nm)293
weight (kg)280
ATEX certificationNE
motor loadS1
bearings DE/NDE6213 ZC3 / 6213 ZC3

Compare a product
1LA.. / 1LG.. motors
1LA.. / 1LG.. motors


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Motor design

0 - IMB3 - footstanding design0,00 EUR
1 - IMB5 - flange design (large flange)92,56 EUR
4 - IMV1 - flange design (large flange) with canopy for vertical position176,91 EUR
6 - IMB35 - combined design foot-standing with large flange154,77 EUR
9 - other design - choose in configuration below0,00 EUR

Motor voltage

1 - 400/230V Y/D 50Hz, 460VY 60Hz (basic voltage up to 3kW)0,00 EUR
3 - 500VY 50Hz0,00 EUR
5 - 500VD 50Hz0,00 EUR
6 - 400/690V D/Y 50Hz, 460VD 60Hz (basic voltage from 3kW)0,00 EUR
9 - other voltage - choose in config. bellow0,00 EUR

Product configuration (voluntary options):

IE1 motors in accordance with directive EU 2009/12

Selected:
mandatory option
C13 - increased ambient temperature (up to +55°C)22,05 EUR
D22 - For export outside EU (EEA). Without "CE" mark.0,00 EUR

thermal protection

Selected:
- basic design - no thermal protection0,00 EUR
A11 - 3x PTC thermistor in windings77,13 EUR
A12 - 6x PTC thermistor in windings129,64 EUR
A23 - 1x KTY84-130 in windings109,73 EUR
A25 - 2x KTY84-130 in windings178,90 EUR
A31 - 3x bimetal thermal switch in windings86,59 EUR
A60 - 3x thermometer Pt100358,30 EUR
A61 - 6x thermometer Pt100584,73 EUR
A72 - 2x Pt100 in basic circuit for bearings1 020,16 EUR
A78 - 2x Pt100 in 3-wire circuit for bearings1 119,69 EUR

modular extensions

Selected:
- basic design - no extensions0,00 EUR
G17 - forced ventilation unit709,14 EUR
G26 - brake Lenze, supply voltage 1AC 230V1 935,82 EUR
H57 - pulse generator 1XP8001-1 (HTL) 1024ppr363,28 EUR
H58 - pulse generator 1XP8001-2 (TTL) 1024ppr497,64 EUR
H61 - ventilation unit + 1XP8001-1 (HTL)1 069,93 EUR
H62 - brake 1AC 230V + 1XP8001-1 (HTL)2 537,96 EUR
H63 - brake 1AC 230V + ventilation unit2 911,19 EUR
H64 - brake 1AC 230V + ventilation unit + 1XP8001-1 (HTL) 3 284,42 EUR
H97 - ventilation unit + 1XP8001-2 (TTL)1 201,80 EUR
H98 - brake 1AC 230V + 1XP8001-2 (TTL)2 662,37 EUR
H99 - brake 1AC 230V + ventilation unit + 1XP8001-2 (TTL) 3 383,95 EUR

brake voltage

Selected:
(available only in combination with G26 option)
- basic design0,00 EUR
C00 - brake Lenze, supply voltage DC 24V17,07 EUR
C01 - brake Lenze, supply voltage 2AC 400V17,07 EUR

manual brake release (only with option G26)

Selected:
(available only in combination with G26 option)
- basic design - no manual brake release0,00 EUR
K82 - manual brake release for G26221,95 EUR

other pulse generators

Selected:
- basic design - no extensions0,00 EUR
H70 - pulse generator Leine-Linde 861 900 220 1 176,92 EUR
H72 - pulse generator Leine-Linde HOG 9D 1024ppr1 196,82 EUR
H73 - pulse generator Leine-Linde HOG 10D 1024ppr1 420,76 EUR
H78 - designed for retrofitting with LL861 900 220166,96 EUR
H79 - designed for retrofitting with Leine - Linde HOG 9D 1024 I154,52 EUR
H80 - designed for retrofitting with Leine - Linde HOG 10D 1024 I166,96 EUR

other voltages

Selected:
- standard voltage (acc. to motor design)0,00 EUR
L1A - 3AC 50Hz 400VY0,00 EUR
L1C - 3AC 50Hz 415VY47,28 EUR
L1D - 3AC 50Hz 415VD47,28 EUR
L1R - 3AC 50Hz 220VD/380VY47,28 EUR
L1R - 3AC 50Hz 380VD/660VY47,28 EUR
L1U - 3AC 50Hz 400VD0,00 EUR
L2A - 3AC 60Hz 220VD/380VY (50Hz power output)47,28 EUR
L2B - 3AC 60Hz 220VD/380VY (60Hz power output)47,28 EUR
L2C - 3AC 60Hz 380VD/660VY (50Hz power output)47,28 EUR
L2D - 3AC 60Hz 380VD/660VY (60Hz power output)47,28 EUR
L2E - 3AC 60Hz 460VY (60Hz power output)0,00 EUR
L2F - 3AC 60Hz 460VD (60Hz power output)0,00 EUR
L2L - 3AC 60Hz 575VY (60Hz power output)47,28 EUR
L2M - 3AC 60Hz 575VD (60Hz power output)0,00 EUR
L2Q - 3AC 60Hz 440VY (50Hz power output)47,28 EUR
L2R - 3AC 60Hz 440VD (50Hz power output)47,28 EUR
L2S - 3AC 60Hz 460VY (50Hz power output)47,28 EUR
L2T - 3AC 60Hz 460VD (50Hz power output)47,28 EUR
L2U - 3AC 60Hz 575VY (50Hz power output)47,28 EUR
L2V - 3AC 60Hz 575VD (50Hz power output)47,28 EUR
L2W - 3AC 60Hz 440VY (60Hz power output)47,28 EUR
L2X - 3AC 60Hz 440VD (60Hz power output)47,28 EUR

bearings

Selected:
- basic design bearings0,00 EUR
K20 - heavy-duty bearings (DE side)86,09 EUR
K36 - bearings 63xx DE and NDE side194,08 EUR

locating bearings

Selected:
- basic design0,00 EUR
K94 - locating bearing DE141,33 EUR
L04 - locating bearing NDE0,00 EUR

insulated bearing catridge

Selected:
(obligatory for motors from size 280 and convereter-fed operation)
- basic design0,00 EUR
L27 - insulated bearing cartridge (NDE)418,02 EUR

regreasing device

Selected:
- basic design0,00 EUR
K40 - regreasing device DE+NDE113,21 EUR

test certificates

Selected:
- without test certificates0,00 EUR
B02 - inspection certificate 3.1 in acc. with EN10 2046,79 EUR

national certificates and standards

Selected:
- without national certificates0,00 EUR
D30 - electrical according to NEMA MG1-1216,42 EUR
D31 - design according to UL with "Recognition Mark"122,42 EUR
D40 - Canadian regulations (CSA)100,03 EUR

protection degree

Selected:
- basic design0,00 EUR
K50 - IP65 degree of protection106,99 EUR
K52 - IP56 degree of protection (non-heavy-sea)117,69 EUR

terminal box position

Selected:
- basic design - terminal box on top0,00 EUR
K09 - terminal box on right side122,42 EUR
K10 - terminal box on left side122,42 EUR

terminal inputs position

Selected:
- basic design0,00 EUR
K83 - rotation of the connection box through 90°, entry from DE17,07 EUR
K84 - rotation of the connection box through 90°, entry from NDE17,07 EUR
K85 - rotation of the connection box through 180°17,07 EUR

shaft extension

Selected:
- basic design0,00 EUR
K16 - second standard shaft extension90,82 EUR
K17 - Oiltight radial sealing ring56,48 EUR

rotor balancing

Selected:
- basic design0,00 EUR
K02 - vibration severity grade B212,99 EUR

windings heating

Selected:
- basic design - no heating0,00 EUR
K45 - anti-condensation heaters for 230V208,76 EUR
K46 - anti-condensation heaters for 115V208,76 EUR

windings and insulation, increased ambient tempera

Selected:
- basic design0,00 EUR
C11 - temp. class F, used acc. to F, service factor SF1,122,05 EUR
C12 - temp. class F, used acc. to F, increased power rating (10%)22,05 EUR
C18 - temp. class H, increased ambient temperature (+60°C)186,86 EUR
C19 - increased air humidity 30 - 60g water per m3 of air363,28 EUR
C26 - increased air humidity 60 - 100g water per m3 of air1 356,07 EUR

design for Zone 2, 21 or 22

Selected:
(not available in combination with modular extensions)
- basic design - no ATEX protection0,00 EUR
M34 - design for Zone 21 Ex II 2 D T125°C (conducting dust), mains-fed operation296,10 EUR
M35 - design for Zone 22 Ex II 3 D T125°C (non-conducting dust), mains-fed operation196,32 EUR
M38 - design for Zone 21 Ex II 2 D T125°C (conducting dust), converter-fed operation368,25 EUR
M39 - design for Zone 22 Ex II 3 D T125°C (non-conducting dust), converter-fed operation266,24 EUR
M73 - design for Zone 2 Ex nA II T3, converter-fed operation306,05 EUR

other motor design

Selected:
- motor design acc. to standard design selection0,00 EUR
M1F - IMV5 with canopy83,85 EUR
M1G - IMV3 (large flange)92,56 EUR

Documentation

complete catalogue: PDF standard motors up to size 450 (EN)

Production datasheet: PDF Overview of Siemens electric motors production lines (CZ)

Production datasheet: PDF Overview of Siemens ex-proof electric motors production lines (CZ)

complete catalogue: PDF 1LG4 ang 1LG6 catalogue (CZ)

manual: PDF manual - full version (CZ)

manual: PDF compact manual (CZ)

manual: PDF manual - full version (EN)

manual: PDF manual - compact version (EN)

Dimensions

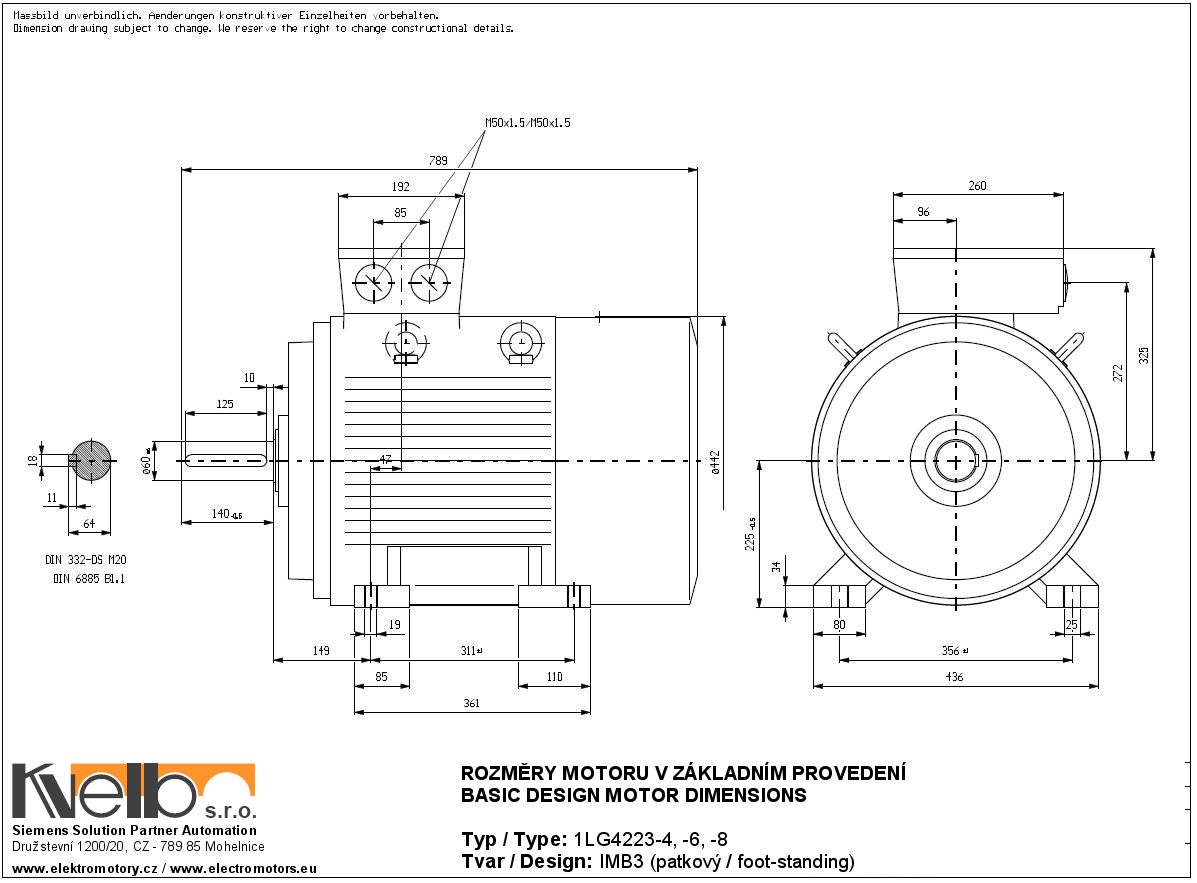

1LG4223-4,6,8 IMB3 (foot-standing) dimensions
1LG4223-4,6,8 IMB3 (foot-standing) dimensions

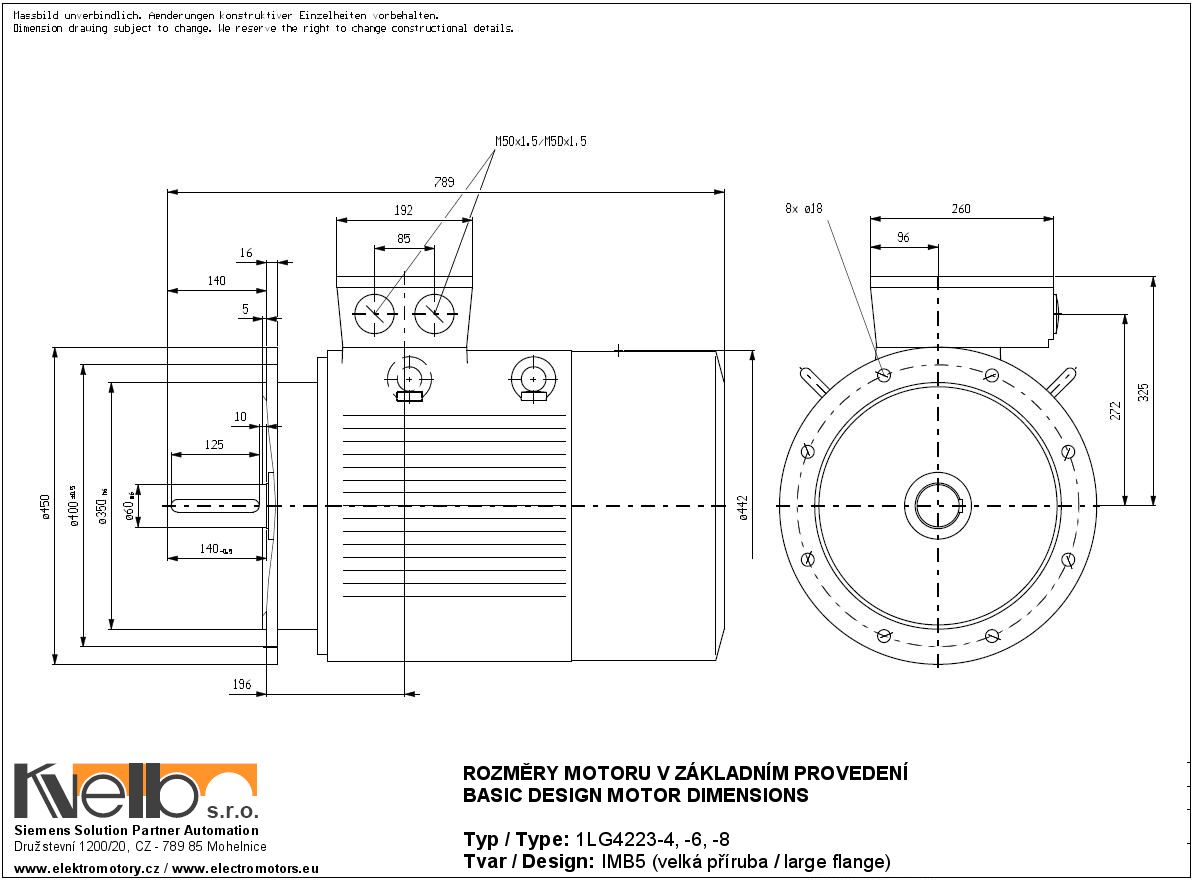

1LG4223-4,6,8 IMB5 (large flange) dimensions
1LG4223-4,6,8 IMB5 (large flange) dimensions

Description

Three-phase squirrel-cage motor, energy saving. Basic line suitable for using in all kinds of standard drives applications including fans, pumps, conveyor belts, etc.). Suitable also for frequency converter driven applications.

Produkt nemá přiřazeno žádné příslušenství

Configuration code: 1LG4223-6AA

Standard delivery term: 1

Price: 1 942,62EUR | Price incl. VAT: 2 331,15EUR (Basic price excl. VAT1 942,62EUR)

Your price includes a discount of 13 % from the recommended price 2 232,90 EUR Excluding VAT.
