IE1 electric motors (standard efficiency) > With increased power (1LA9, 1LG4) > 4-poles (1500 RPM)

1LA9113-4LA

Producer:SIEMENS


Delivery term (days):1 Guarantee period:12 months

Product specifications
power (kW)5,50
speed (rpm)1 440
efficiencyNA
number of poles (pole)4
motor housingAluminium
protectionIP55
motor frame size112M
insulation classF
basic voltage (V)400/690V D/Y 50Hz, 460V D 60Hz
rated imput current (A)12,2/7,07
output torque (Nm)36,50
weight (kg)37
ATEX certificationNE
motor loadS1
bearings DE/NDE6206 2ZC3/6205 2ZC3

Compare a product
1LA.. / 1LG.. motors
1LA.. / 1LG.. motors


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Motor design

0 - IMB3 - footstanding design0,00 EUR
1 - IMB5 - flange design (large flange)21,53 EUR
2 - IMB14 - flange design (small flange)21,53 EUR
3 - IMB14 - flange design (medium flange)21,53 EUR
4 - IMV1 - flange design (large flange) with canopy for vertical position39,10 EUR
6 - IMB35 - combined design foot-standing with large flange28,19 EUR
7 - IMB34 - combined design foot-standing with small flange28,19 EUR
9 - other design - choose in configuration below0,00 EUR

Motor voltage

1 - 400/230V Y/D 50Hz, 460VY 60Hz (basic voltage up to 3kW)0,00 EUR
5 - 500VD 50Hz0,00 EUR
6 - 400/690V D/Y 50Hz, 460VD 60Hz (basic voltage from 3kW)0,00 EUR
9 - other voltage - choose in config. bellow0,00 EUR

Product configuration (voluntary options):

IE1 motors in accordance with directive EU 2009/12

Selected:
mandatory option
D04 - low ambient temperature (from -30°C)17,11 EUR
D22 - For export outside EU (EEA). Without "CE" mark.0,00 EUR

thermal protection

Selected:
- basic design - no thermal protection0,00 EUR
A11 - 3x PTC thermistor in windings29,07 EUR
A12 - 6x PTC thermistor in windings49,64 EUR
A23 - 1x KTY84-130 in windings29,07 EUR
A25 - 2x KTY84-130 in windings58,14 EUR
A31 - 3x bimetal thermal switch in windings32,36 EUR
A60 - 3x thermometer Pt100364,73 EUR

modular extensions

Selected:
- basic design - no extensions0,00 EUR
G17 - forced ventilation unit195,52 EUR
G26 - brake Lenze, supply voltage 1AC 230V173,68 EUR
H57 - pulse generator 1XP8001-1 (HTL) 1024ppr150,07 EUR
H58 - pulse generator 1XP8001-2 (TTL) 1024ppr215,07 EUR
H61 - ventilation unit + 1XP8001-1 (HTL)345,59 EUR
H62 - brake 1AC 230V + 1XP8001-1 (HTL)314,86 EUR
H63 - brake 1AC 230V + ventilation unit377,96 EUR
H64 - brake 1AC 230V + ventilation unit + 1XP8001-1 (HTL) 528,03 EUR
H97 - ventilation unit + 1XP8001-2 (TTL)410,72 EUR
H98 - brake 1AC 230V + 1XP8001-2 (TTL)397,38 EUR
H99 - brake 1AC 230V + ventilation unit + 1XP8001-2 (TTL) 548,47 EUR

brake voltage

Selected:
(available only in combination with G26 option)
- basic design0,00 EUR
C00 - brake Lenze, supply voltage DC 24V12,42 EUR
C01 - brake Lenze, supply voltage 2AC 400V12,42 EUR

manual brake release (only with option G26)

Selected:
(available only in combination with G26 option)
- basic design - no manual brake release0,00 EUR
K82 - manual brake release for G2658,15 EUR

other voltages

Selected:
- standard voltage (acc. to motor design)0,00 EUR
L1A - 3AC 50Hz 400VY0,00 EUR
L1C - 3AC 50Hz 415VY15,77 EUR
L1D - 3AC 50Hz 415VD15,77 EUR
L1R - 3AC 50Hz 220VD/380VY15,77 EUR
L1R - 3AC 50Hz 380VD/660VY14,60 EUR
L1U - 3AC 50Hz 400VD0,00 EUR
L2A - 3AC 60Hz 220VD/380VY (50Hz power output)15,77 EUR
L2B - 3AC 60Hz 220VD/380VY (60Hz power output)15,77 EUR
L2C - 3AC 60Hz 380VD/660VY (50Hz power output)15,77 EUR
L2D - 3AC 60Hz 380VD/660VY (60Hz power output)15,77 EUR
L2E - 3AC 60Hz 460VY (60Hz power output)0,00 EUR
L2F - 3AC 60Hz 460VD (60Hz power output)0,00 EUR
L2L - 3AC 60Hz 575VY (60Hz power output)15,77 EUR
L2M - 3AC 60Hz 575VD (60Hz power output)14,60 EUR
L2Q - 3AC 60Hz 440VY (50Hz power output)15,77 EUR
L2R - 3AC 60Hz 440VD (50Hz power output)15,77 EUR
L2S - 3AC 60Hz 460VY (50Hz power output)15,77 EUR
L2T - 3AC 60Hz 460VD (50Hz power output)15,77 EUR
L2U - 3AC 60Hz 575VY (50Hz power output)15,77 EUR
L2V - 3AC 60Hz 575VD (50Hz power output)14,60 EUR
L2W - 3AC 60Hz 440VY (60Hz power output)15,77 EUR
L2X - 3AC 60Hz 440VD (60Hz power output)15,77 EUR
L3E - 3AC 60Hz 230VYY/460VY (50Hz power output)50,78 EUR
L3F - 3AC 60Hz 230VYY/460VY (60Hz power output)53,32 EUR
L3G - 3AC 60Hz 230VDD/460VD (50Hz power output)75,67 EUR
L3H - 3AC 60Hz 230VDD/460VD (60Hz power output)75,67 EUR

bearings

Selected:
- basic design bearings0,00 EUR
K20 - heavy-duty bearings (DE side)26,41 EUR

locating bearings

Selected:
- basic design0,00 EUR
K94 - locating bearing DE19,30 EUR
L04 - locating bearing NDE10,41 EUR

insulated bearing catridge

Selected:
(obligatory for motors from size 280 and convereter-fed operation)
- basic design0,00 EUR

regreasing device

Selected:
- basic design0,00 EUR
K40 - regreasing device DE+NDE72,88 EUR

test certificates

Selected:
- without test certificates0,00 EUR
B02 - inspection certificate 3.1 in acc. with EN10 2046,94 EUR

national certificates and standards

Selected:
- without national certificates0,00 EUR
D30 - electrical according to NEMA MG1-120,00 EUR
D31 - design according to UL with "Recognition Mark"26,92 EUR
D40 - Canadian regulations (CSA)26,92 EUR
K30 - VIK design56,62 EUR

protection degree

Selected:
- basic design0,00 EUR
- basic design0,00 EUR
K50 - IP65 degree of protection31,99 EUR
K52 - IP56 degree of protection (non-heavy-sea)37,07 EUR

terminal box position

Selected:
- basic design - terminal box on top0,00 EUR
K09 - terminal box on right side25,39 EUR
K10 - terminal box on left side25,39 EUR

terminal inputs position

Selected:
- basic design0,00 EUR
K83 - rotation of the connection box through 90°, entry from DE16,50 EUR
K84 - rotation of the connection box through 90°, entry from NDE16,50 EUR
K85 - rotation of the connection box through 180°0,00 EUR

shaft extension

Selected:
- basic design0,00 EUR
K16 - second standard shaft extension31,99 EUR
K17 - Oiltight radial sealing ring14,09 EUR

rotor balancing

Selected:
- basic design0,00 EUR
K02 - vibration severity grade B73,38 EUR

windings heating

Selected:
- basic design - no heating0,00 EUR
K45 - anti-condensation heaters for 230V96,49 EUR
K46 - anti-condensation heaters for 115V96,49 EUR

windings and insulation, increased ambient tempera

Selected:
- basic design0,00 EUR
C11 - temp. class F, used acc. to F, service factor SF1,110,04 EUR
C12 - temp. class F, used acc. to F, increased power rating (10%)11,68 EUR
C13 - temp. class F, used acc. to F, increased ambient temperature (+55°C)10,82 EUR
C19 - increased air humidity 30 - 60g water per m3 of air33,26 EUR
C26 - increased air humidity 60 - 100g water per m3 of air72,62 EUR

design for Zone 2, 21 or 22

Selected:
(not available in combination with modular extensions)
- basic design - no ATEX protection0,00 EUR
M34 - design for Zone 21 Ex II 2 D T125°C (conducting dust), mains-fed operation56,62 EUR
M35 - design for Zone 22 Ex II 3 D T125°C (non-conducting dust), mains-fed operation28,69 EUR
M38 - design for Zone 21 Ex II 2 D T125°C (conducting dust), converter-fed operation83,29 EUR
M39 - design for Zone 22 Ex II 3 D T125°C (non-conducting dust), converter-fed operation55,35 EUR
M72 - design for Zone 2 Ex nA II T3, mains-fed operation45,71 EUR
M73 - design for Zone 2 Ex nA II T3, converter-fed operation106,90 EUR

connection box Ex protection

Selected:
- basic termail box protection (EEx e IIC)0,00 EUR

other motor design

Selected:
- motor design acc. to standard design selection0,00 EUR
M1F - IMV5 with canopy18,43 EUR
M2A - IMV18 with canopy (small flange)41,14 EUR
M2B - IMV18 with canopy (non-standard flange)41,14 EUR
M2C - IMB34 with non-standard flange29,71 EUR

Documentation

complete catalogue: PDF Complete catalogue (CZ)

complete catalogue: PDF standard motors up to size 450 (EN)

Production datasheet: PDF Overview of Siemens electric motors production lines (CZ)

Production datasheet: PDF Overview of Siemens ex-proof electric motors production lines (CZ)

manual: PDF manual - full version (CZ)

manual: PDF compact manual (CZ)

manual: PDF manual - full version (EN)

manual: PDF manual - compact version (EN)

Dimensions

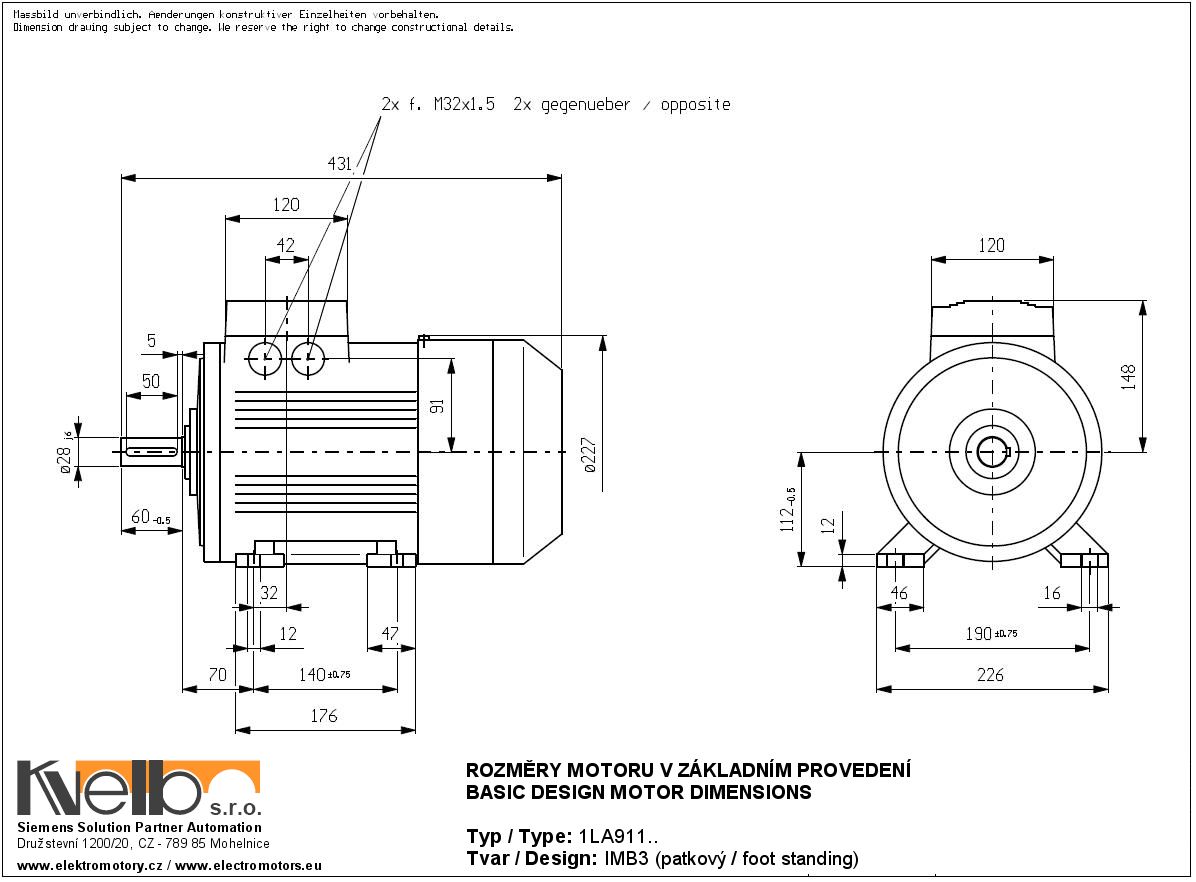

1LA911 IMB3 (foot-standing) dimensions
1LA911 IMB3 (foot-standing) dimensions

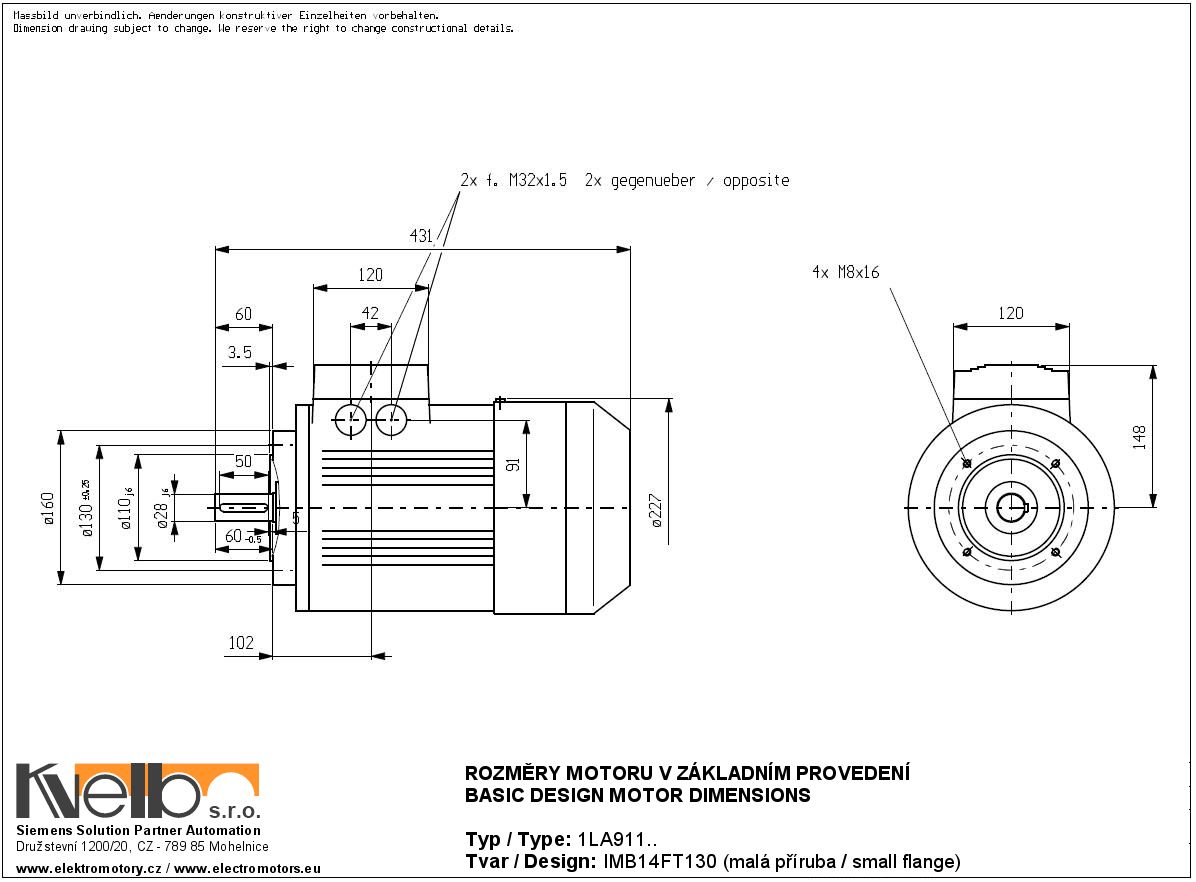

1LA911 IMB14FT (small flange) dimensions
1LA911 IMB14FT (small flange) dimensions

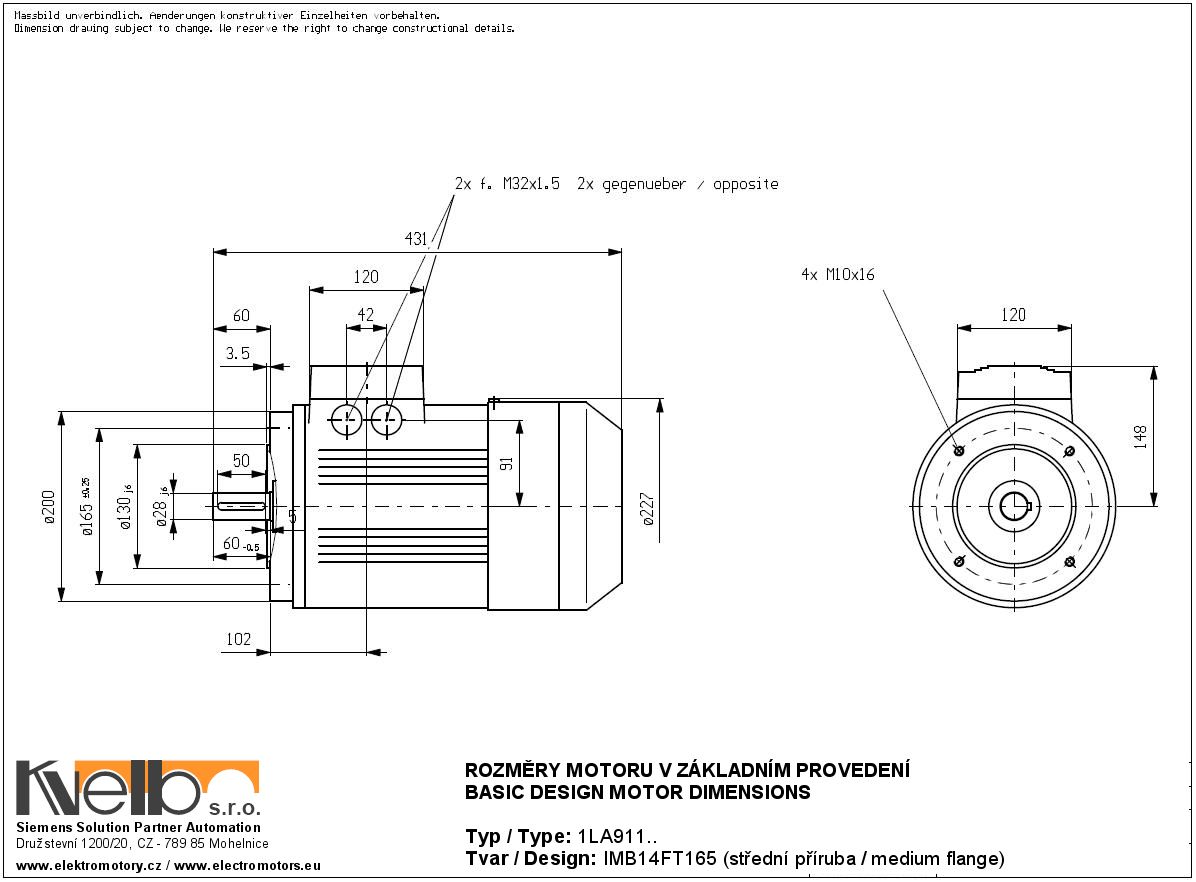

1LA911 IMB14FT (medium flange) dimensions
