Asynchronous electromotors > Increased safety EEx e (1MA7) > 4-poles (1500 RPM)

1MA7063-4BB

Producer:SIEMENS


Delivery term (days):28 Guarantee period:12 months

Product specifications
power (kW)0,18
speed (rpm)1 330
efficiency (CEMEP)NA
number of poles (pole)4
motor housingAluminium
protectionIP55
motor frame size63M
insulation classF
basic voltage (V)400Y/230D 50Hz
rated current (A)1,08/0,63
output torque (Nm)1,30
weight (kg)4,50
ATEX certificationEEx e IIC T1-T3
motor loadS1
bearings DE/NDE6201 2ZC3/6201 2ZC3

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Motor design

0 - IMB3 - footstanding design0,00 EUR
1 - IMB5 - flange design (large flange)9,39 EUR
2 - IMB14 - flange design (small flange)9,39 EUR
3 - IMB14 - flange design (medium flange)9,39 EUR
4 - IMV1 - flange design (large flange) with canopy for vertical position18,78 EUR
6 - IMB35 - combined design foot-standing with large flange13,21 EUR
7 - IMB34 - combined design foot-standing with small flange13,21 EUR
9 - other design - choose in configuration below0,00 EUR

Motor voltage

1 - 400/230V Y/D 50Hz, 460VY 60Hz (basic voltage up to 3kW)0,00 EUR
6 - 400/690V D/Y 50Hz, 460VD 60Hz (basic voltage from 3kW)0,00 EUR
9 - other voltage - choose in config. bellow0,00 EUR

Product configuration (voluntary options):

thermal protection

Selected:
- basic design - no thermal protection0,00 EUR
A11 - 3x PTC thermistor in windings20,39 EUR
A12 - 6x PTC thermistor in windings34,78 EUR

other voltages

Selected:
- standard voltage (acc. to motor design)0,00 EUR
L1C - 3AC 50Hz 415VY6,06 EUR
L1D - 3AC 50Hz 415VD6,06 EUR
L1R - 3AC 50Hz 220VD/380VY6,06 EUR
L1R - 3AC 50Hz 380VD/660VY6,06 EUR
L2A - 3AC 60Hz 220VD/380VY (50Hz power output)6,06 EUR
L2C - 3AC 60Hz 380VD/660VY (50Hz power output)6,06 EUR
L2Q - 3AC 60Hz 440VY (50Hz power output)6,06 EUR
L2R - 3AC 60Hz 440VD (50Hz power output)6,06 EUR
L2S - 3AC 60Hz 460VY (50Hz power output)6,06 EUR
L2T - 3AC 60Hz 460VD (50Hz power output)6,06 EUR
L2U - 3AC 60Hz 575VY (50Hz power output)6,06 EUR
L2V - 3AC 60Hz 575VD (50Hz power output)6,06 EUR

locating bearings

Selected:
- basic design0,00 EUR
K94 - locating bearing DE8,30 EUR
L04 - locating bearing NDE7,45 EUR

test certificates

Selected:
- without test certificates0,00 EUR
B02 - inspection certificate 3.1 in acc. with EN10 2045,99 EUR

national certificates and standards

Selected:
- basic design acc. to IEC0,00 EUR
D01 - CCC (China compulsory certification)8,45 EUR
K30 - VIK design9,12 EUR

protection degree

Selected:
- basic design0,00 EUR
K50 - IP65 degree of protection31,30 EUR
K52 - IP56 degree of protection (non-heavy-sea)54,40 EUR

terminal inputs position

Selected:
- basic design0,00 EUR
K83 - rotation of the connection box through 90°, entry from DE3,40 EUR
K84 - rotation of the connection box through 90°, entry from NDE3,40 EUR
K85 - rotation of the connection box through 180°3,40 EUR

shaft extension

Selected:
- basic design0,00 EUR
K16 - second standard shaft extension17,66 EUR
K17 - Oiltight radial sealing ring9,09 EUR

rotor balancing

Selected:
- basic design0,00 EUR
K02 - vibration severity grade B46,20 EUR

vinutí a izolace

Selected:
- basic design0,00 EUR
C19 - increased air humidity 30 - 60g water per m3 of air31,05 EUR
C26 - increased air humidity 60 - 100g water per m3 of air56,64 EUR

connection box Ex protection

Selected:
- basic termail box protection (EEx e IIC)0,00 EUR
K53 - terminal box incerased protection EEx d IIC54,40 EUR

other motor design

Selected:
- motor design acc. to standard design selection0,00 EUR
M1F - IMV5 with canopy9,31 EUR
M2A - IMV18 with canopy (small flange)18,78 EUR
M2B - IMV18 with canopy (non-standard flange)18,78 EUR
M2C - IMB34 with non-standard flange13,21 EUR

Documentation

manual: PDF Manual (CZ)

complete catalogue: PDF Complete catalogue (CZ)

manual: PDF Manual (EN)

complete catalogue: PDF Explosion-proof motors (EN)

Dimensions

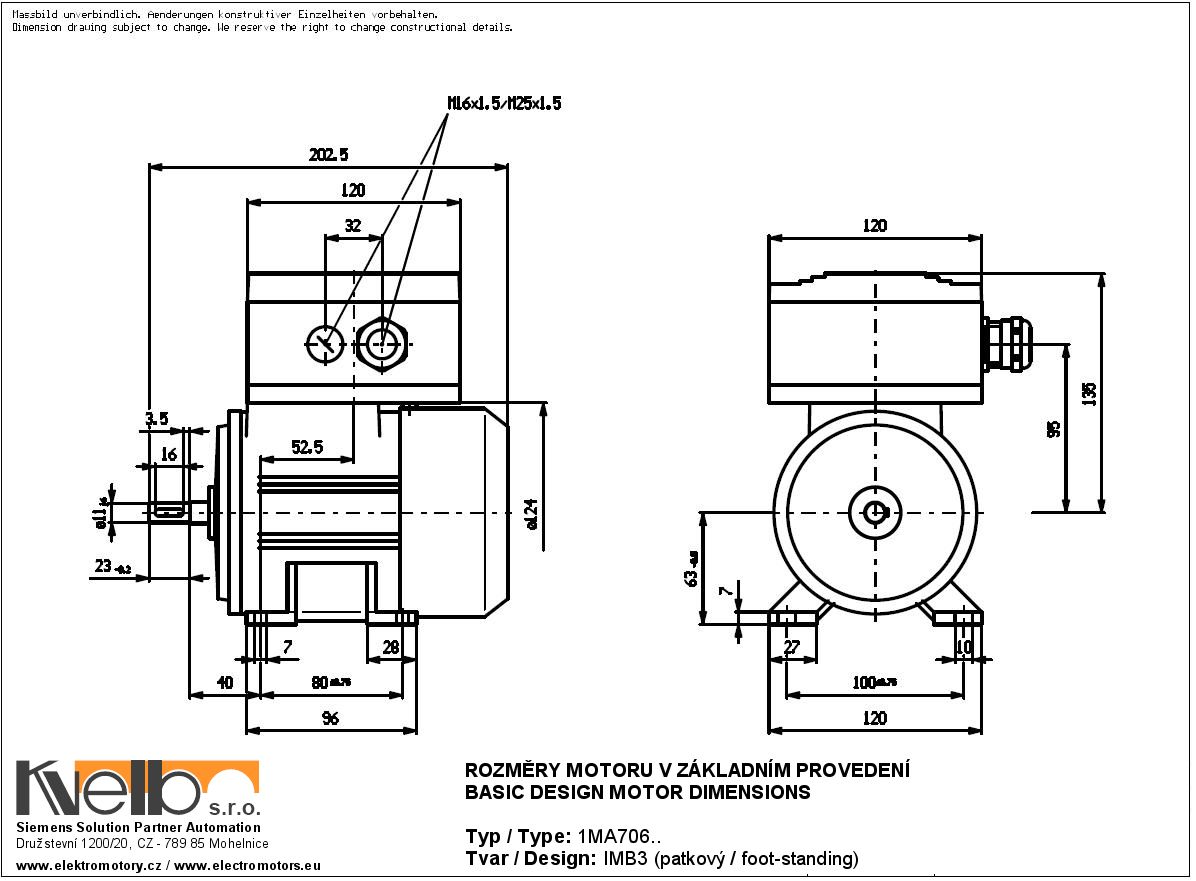

1MA706 IMB3 (foot-standing) dimensions
1MA706 IMB3 (foot-standing) dimensions

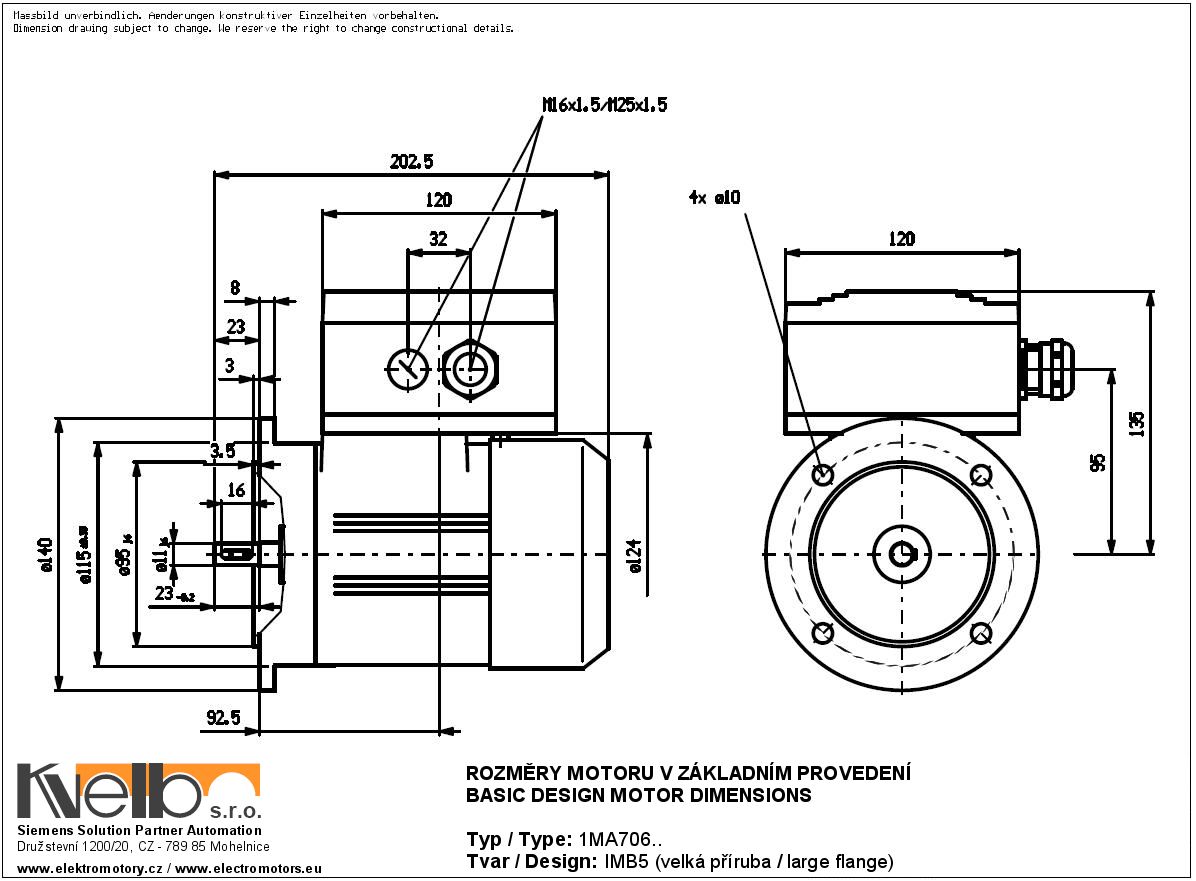

1MA706 IMB5 (large flange) dimensions
1MA706 IMB5 (large flange) dimensions

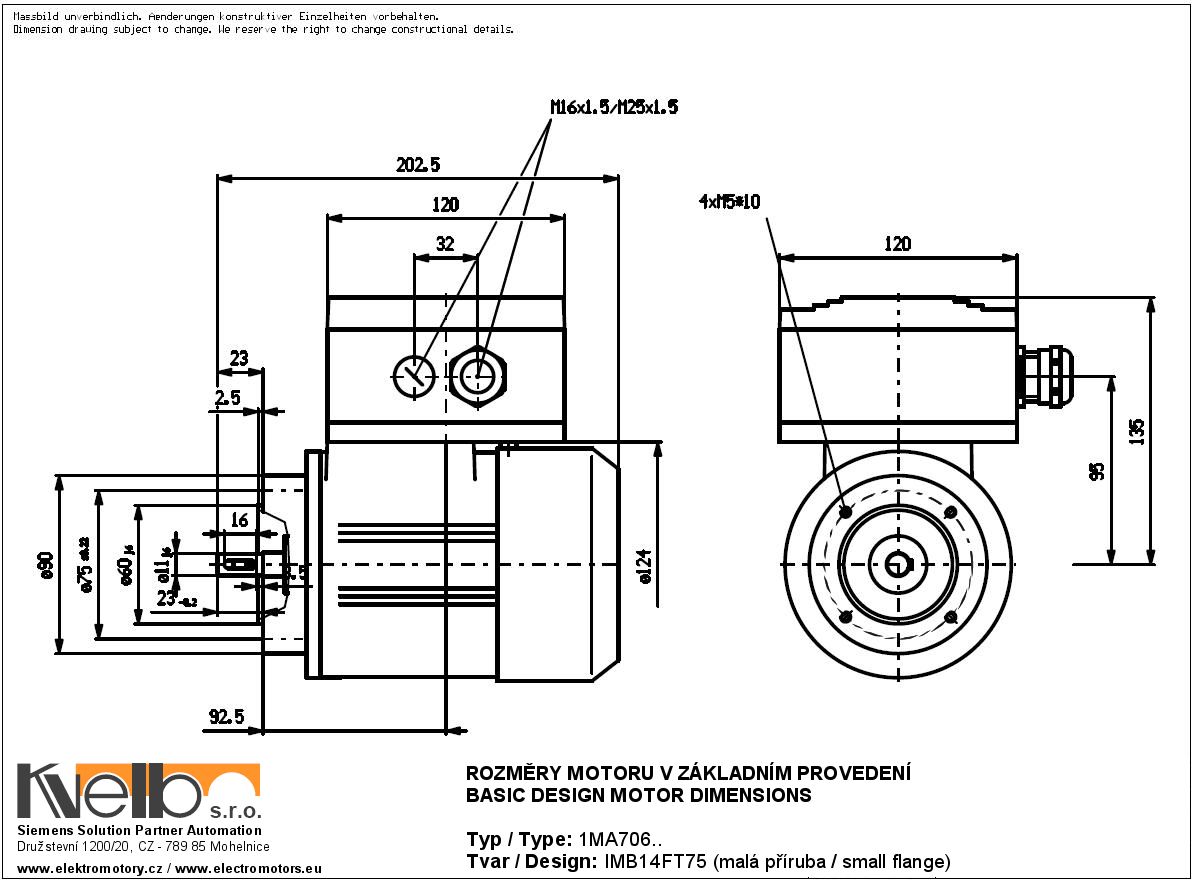

1MA706 IMB14FT (small flange) dimensions
1MA706 IMB14FT (small flange) dimensions

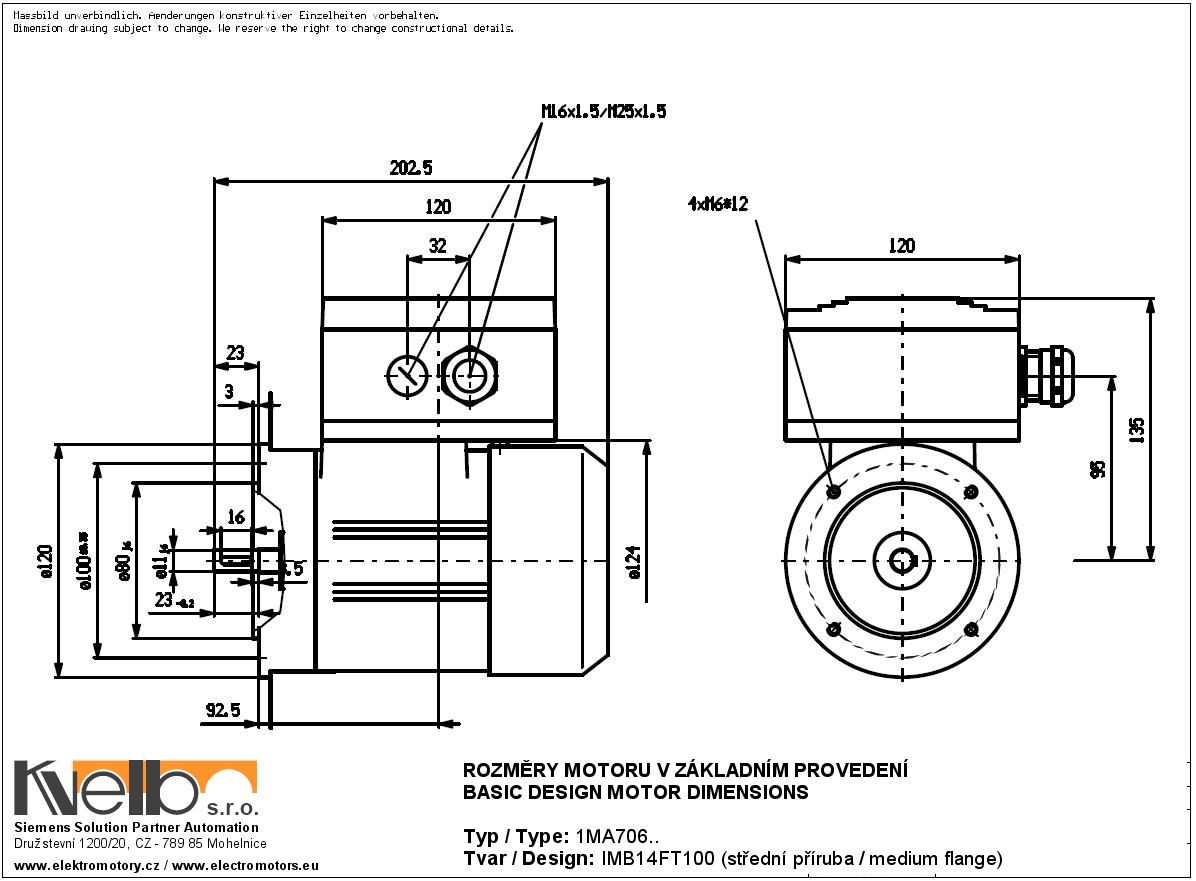

1MA706 IMB14FT (medium flange) dimensions
1MA706 IMB14FT (medium flange) dimensions

Description

Three-phase squirrel-cage ex-proof motor for Zone 1. Protection degree EEx e IIC T1-T2 ot T3. Suitable for Siemens converter driven operation (only with option A11 - 3xPTC thermistor or A12 - 6x PTC thermistor installed).
Produkt nemá přiřazeno žádné příslušenství

Configuration code: 1MA7063-4BB

Standard delivery term: 28

Price: 79,29EUR | Price incl. VAT: 95,15EUR (Basic price excl. VAT79,29EUR)

Your price includes a discount of 10 % from the recommended price 88,10 EUR Excluding VAT.
