IE1 electric motors (standard efficiency) > With increased power (1LA9, 1LG4) > 2-poles (3000 RPM)

1LG4258-2AA

Producer:SIEMENS


Delivery term (days):60 Guarantee period:12 months

Product specifications
power (kW)75
speed (rpm)2 970
efficiencyNA
number of poles (pole)2
motor housingcast iron
protectionIP55
motor frame size250M
insulation classF
basic voltage (V)400/690 D/Y 50Hz, 460V D 60Hz
rated imput current (A)130,0/75,36
output torque (Nm)241,16
weight (kg)420
ATEX certificationNE
motor loadS1
bearings DE/NDE6215 ZC3/6215 ZC3

Compare a product
1LA.. / 1LG.. motors
1LA.. / 1LG.. motors


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Motor design

0 - IMB3 - footstanding design0,00 EUR
1 - IMB5 - flange design (large flange)111,22 EUR
4 - IMV1 - flange design (large flange) with canopy for vertical position218,22 EUR
6 - IMB35 - combined design foot-standing with large flange210,75 EUR
9 - other design - choose in configuration below0,00 EUR

Motor voltage

1 - 400/230V Y/D 50Hz, 460VY 60Hz (basic voltage up to 3kW)0,00 EUR
5 - 500VD 50Hz0,00 EUR
6 - 400/690V D/Y 50Hz, 460VD 60Hz (basic voltage from 3kW)0,00 EUR
9 - other voltage - choose in config. bellow0,00 EUR

Product configuration (voluntary options):

IE1 motors in accordance with directive EU 2009/12

Selected:
mandatory option
D04 - low ambient temperature (from -30°C)313,51 EUR
D22 - For export outside EU (EEA). Without "CE" mark.0,00 EUR

thermal protection

Selected:
- basic design - no thermal protection0,00 EUR
A11 - 3x PTC thermistor in windings77,13 EUR
A12 - 6x PTC thermistor in windings129,64 EUR
A23 - 1x KTY84-130 in windings142,33 EUR
A25 - 2x KTY84-130 in windings242,35 EUR
A31 - 3x bimetal thermal switch in windings86,59 EUR
A60 - 3x thermometer Pt100395,62 EUR
A61 - 6x thermometer Pt100584,73 EUR
A72 - 2x Pt100 in basic circuit for bearings1 020,16 EUR
A78 - 2x Pt100 in 3-wire circuit for bearings1 119,69 EUR

modular extensions

Selected:
- basic design - no extensions0,00 EUR
G17 - forced ventilation unit870,87 EUR
G26 - brake Lenze, supply voltage 1AC 230V6 195,62 EUR
H57 - pulse generator 1XP8001-1 (HTL) 1024ppr363,28 EUR
H58 - pulse generator 1XP8001-2 (TTL) 1024ppr497,64 EUR
H61 - ventilation unit + 1XP8001-1 (HTL)1 236,64 EUR
H62 - brake 1AC 230V + 1XP8001-1 (HTL)6 593,73 EUR
H63 - brake 1AC 230V + ventilation unit7 240,66 EUR
H64 - brake 1AC 230V + ventilation unit + 1XP8001-1 (HTL) 7 539,25 EUR
H97 - ventilation unit + 1XP8001-2 (TTL)1 368,51 EUR
H98 - brake 1AC 230V + 1XP8001-2 (TTL)6 718,14 EUR
H99 - brake 1AC 230V + ventilation unit + 1XP8001-2 (TTL) 7 688,54 EUR

brake voltage

Selected:
(available only in combination with G26 option)
- basic design0,00 EUR
C00 - brake Lenze, supply voltage DC 24V17,07 EUR
C01 - brake Lenze, supply voltage 2AC 400V17,07 EUR

manual brake release (only with option G26)

Selected:
(available only in combination with G26 option)
- basic design - no manual brake release0,00 EUR
K82 - manual brake release for G26253,80 EUR

other pulse generators

Selected:
- basic design - no extensions0,00 EUR
H70 - pulse generator Leine-Linde 861 900 220 1 176,92 EUR
H72 - pulse generator Leine-Linde HOG 9D 1024ppr1 196,82 EUR
H73 - pulse generator Leine-Linde HOG 10D 1024ppr1 420,76 EUR
H78 - designed for retrofitting with LL861 900 220166,96 EUR
H79 - designed for retrofitting with Leine - Linde HOG 9D 1024 I154,52 EUR
H80 - designed for retrofitting with Leine - Linde HOG 10D 1024 I166,96 EUR

other voltages

Selected:
- standard voltage (acc. to motor design)0,00 EUR
L1A - 3AC 50Hz 400VY0,00 EUR
L1C - 3AC 50Hz 415VY53,99 EUR
L1D - 3AC 50Hz 415VD53,99 EUR
L1R - 3AC 50Hz 220VD/380VY53,99 EUR
L1R - 3AC 50Hz 380VD/660VY53,99 EUR
L1U - 3AC 50Hz 400VD0,00 EUR
L2A - 3AC 60Hz 220VD/380VY (50Hz power output)53,99 EUR
L2B - 3AC 60Hz 220VD/380VY (60Hz power output)53,99 EUR
L2C - 3AC 60Hz 380VD/660VY (50Hz power output)53,99 EUR
L2D - 3AC 60Hz 380VD/660VY (60Hz power output)53,99 EUR
L2E - 3AC 60Hz 460VY (60Hz power output)0,00 EUR
L2F - 3AC 60Hz 460VD (60Hz power output)0,00 EUR
L2L - 3AC 60Hz 575VY (60Hz power output)53,99 EUR
L2M - 3AC 60Hz 575VD (60Hz power output)0,00 EUR
L2Q - 3AC 60Hz 440VY (50Hz power output)53,99 EUR
L2R - 3AC 60Hz 440VD (50Hz power output)53,99 EUR
L2S - 3AC 60Hz 460VY (50Hz power output)53,99 EUR
L2T - 3AC 60Hz 460VD (50Hz power output)53,99 EUR
L2U - 3AC 60Hz 575VY (50Hz power output)53,99 EUR
L2V - 3AC 60Hz 575VD (50Hz power output)53,99 EUR
L2W - 3AC 60Hz 440VY (60Hz power output)53,99 EUR
L2X - 3AC 60Hz 440VD (60Hz power output)53,99 EUR

bearings

Selected:
- basic design bearings0,00 EUR
K20 - heavy-duty bearings (DE side)99,53 EUR
K36 - bearings 63xx DE and NDE side268,73 EUR

locating bearings

Selected:
- basic design0,00 EUR
K94 - locating bearing DE181,89 EUR
L04 - locating bearing NDE0,00 EUR

insulated bearing catridge

Selected:
(obligatory for motors from size 280 and convereter-fed operation)
- basic design0,00 EUR
L27 - insulated bearing cartridge (NDE)447,88 EUR

regreasing device

Selected:
- basic design0,00 EUR
K40 - regreasing device DE+NDE135,86 EUR

test certificates

Selected:
- without test certificates0,00 EUR
B02 - inspection certificate 3.1 in acc. with EN10 2046,79 EUR

national certificates and standards

Selected:
- without national certificates0,00 EUR
D30 - electrical according to NEMA MG1-1220,50 EUR
D31 - design according to UL with "Recognition Mark"144,56 EUR
D40 - Canadian regulations (CSA)120,18 EUR

protection degree

Selected:
- basic design0,00 EUR
K50 - IP65 degree of protection124,91 EUR
K52 - IP56 degree of protection (non-heavy-sea)137,10 EUR

terminal box position

Selected:
- basic design - terminal box on top0,00 EUR
K09 - terminal box on right side181,89 EUR
K10 - terminal box on left side181,89 EUR

terminal inputs position

Selected:
- basic design0,00 EUR
K83 - rotation of the connection box through 90°, entry from DE20,50 EUR
K84 - rotation of the connection box through 90°, entry from NDE20,50 EUR
K85 - rotation of the connection box through 180°20,50 EUR

shaft extension

Selected:
- basic design0,00 EUR
K16 - second standard shaft extension94,80 EUR
K17 - Oiltight radial sealing ring75,14 EUR

rotor balancing

Selected:
- basic design0,00 EUR
K02 - vibration severity grade B271,21 EUR

windings heating

Selected:
- basic design - no heating0,00 EUR
K45 - anti-condensation heaters for 230V215,48 EUR
K46 - anti-condensation heaters for 115V215,48 EUR

windings and insulation, increased ambient tempera

Selected:
- basic design0,00 EUR
C11 - temp. class F, used acc. to F, service factor SF1,122,05 EUR
C12 - temp. class F, used acc. to F, increased power rating (10%)22,05 EUR
C13 - temp. class F, used acc. to F, increased ambient temperature (+55°C)22,05 EUR
C18 - temp. class H, increased ambient temperature (+60°C)213,49 EUR
C19 - increased air humidity 30 - 60g water per m3 of air445,39 EUR
C26 - increased air humidity 60 - 100g water per m3 of air1 789,02 EUR

design for Zone 2, 21 or 22

Selected:
(not available in combination with modular extensions)
- basic design - no ATEX protection0,00 EUR
M34 - design for Zone 21 Ex II 2 D T125°C (conducting dust), mains-fed operation378,21 EUR
M35 - design for Zone 22 Ex II 3 D T125°C (non-conducting dust), mains-fed operation237,87 EUR
M38 - design for Zone 21 Ex II 2 D T125°C (conducting dust), converter-fed operation450,36 EUR
M39 - design for Zone 22 Ex II 3 D T125°C (non-conducting dust), converter-fed operation308,54 EUR
M73 - design for Zone 2 Ex nA II T3, converter-fed operation373,23 EUR

other motor design

Selected:
- motor design acc. to standard design selection0,00 EUR
M1F - IMV5 with canopy104,75 EUR
M1G - IMV3 (large flange)111,22 EUR

Documentation

complete catalogue: PDF standard motors up to size 450 (EN)

Production datasheet: PDF Overview of Siemens electric motors production lines (CZ)

Production datasheet: PDF Overview of Siemens ex-proof electric motors production lines (CZ)

complete catalogue: PDF 1LG4 ang 1LG6 catalogue (CZ)

manual: PDF manual - full version (CZ)

manual: PDF compact manual (CZ)

manual: PDF manual - full version (EN)

manual: PDF manual - compact version (EN)

Dimensions

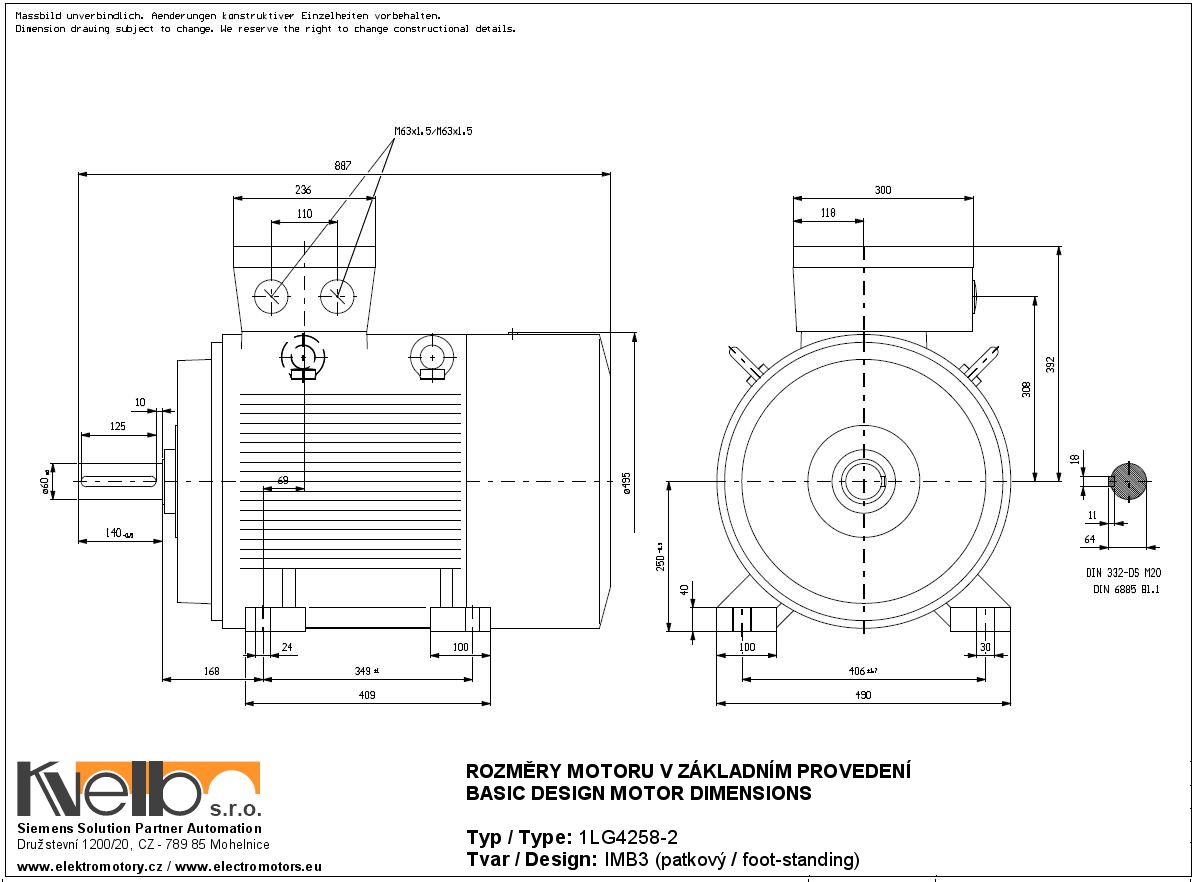

1LG4258-2 IMB3 (foot-standing) dimensions
1LG4258-2 IMB3 (foot-standing) dimensions

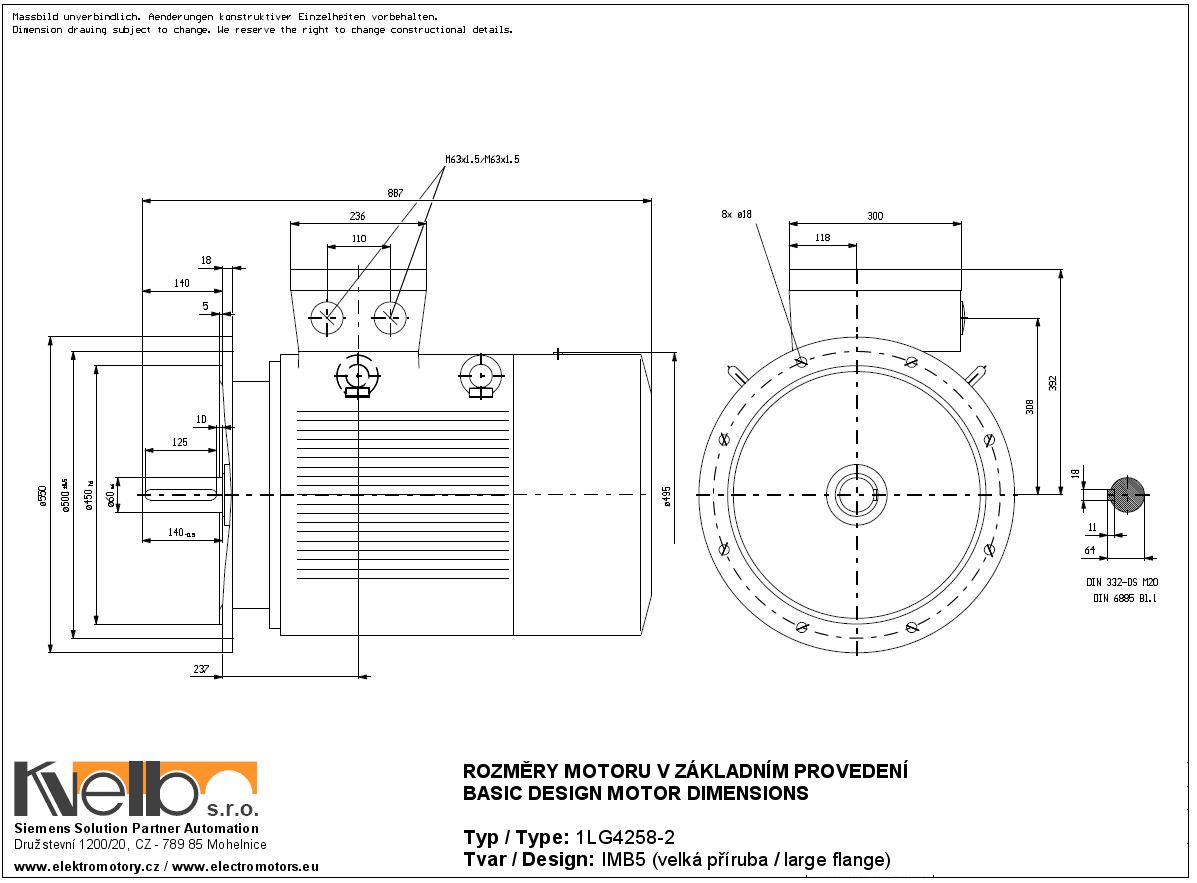

1LG4258-2 IMB5 (large flange) dimensions
