6SL3224-0XE41-3

Product design (mandatory options):

Documentation

complete catalogue: PDF Catalog D11.1 October 2010

complete catalogue: PDF Catalog Add-on D11.1 2009 CZ

manual: PDF CU230P-2 Operating instruction FW 4.4(ENG)

manual: PDF CU230P-2 Parameter Manual FW 4.4(ENG)

manual: PDF CU240B-2/CU240E-2 Operating instruction FW 4.4(ENG)

manual: PDF CU240B-2/CU240E2 Operating instruction FW 4.4(ENG)

manual: PDF PM240 Hardware Installation Manual

manual: PDF Intelligent Operator Panel Operating Instructions

manual: PDF Basic Operator Panel 2 - Operating Instructions

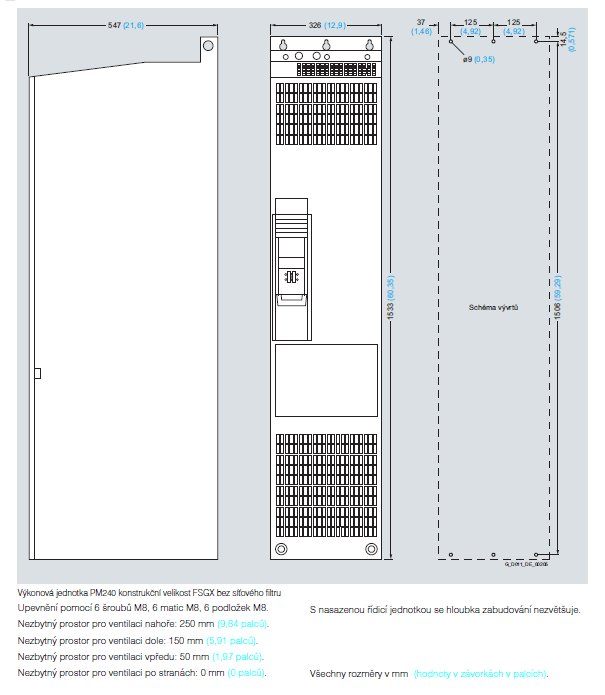

Dimensions

Description

Power Module PM240 for Sinamics G120.

PM240 Power Modules feature an integrated brake chopper and are designed for drives without energy recovery capability to the supply. Generator energy produced during braking is converted to heat via externally connected braking resistors.

The PM240 Power Module can be used to couple the DC link of up to 10 Power Modules. This functionality is useful for applications such as safe power-down after power failure or kinetic buffering (the DC link is supplied in generator mode with kinetic load energy so that the DC link voltage can be maintained).

The PM240 Power Module is also designed for safety-oriented applications. In conjunction with a Fail-safe Control Unit, the drive can be turned into a Safety Integrated Drive.

The permissible cable lengths between inverter and motor are limited. Longer cables can be used if output reactors are connected . Line reactors are available for minimizing system perturbations.

Frame size FSA of the PM240 Power Module is available only without integrated line filter to class A. A base filter for compliance with class A is therefore available. A base filter for compliance with class B is available.

Frame sizes FSB and FSC of the PM240 Power Module are available both with and without integrated line filter to class A. For compliance with class B, PM240 Power Modules with integrated line filter to class A must be fitted additionally with a base filter to class B.

Power Modules with integrated line filter to class A are suitable for connection to TN supply systems. Power Modules without integrated line filter can be connected to grounded (TN, TT) and non-grounded (IT) supply systems.

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	6SL3000-0BE34-4AA0	SINAMICS/MICROMASTER PX LINE FILTER INPUT: 3AC 380-480 V, 50/60 Hz,440A, For FSFX/FSGX conventer;	0,00 EUR	Detail - 6SL3000-0BE34-4AA0
	6SL3000-0CE33-3AA0	SINAMICS/MICROMASTER PX LINE REACTOR FSGX INPUT: 3AC 380-480 V, 50/60 HZ 331 A 160 kW;	0,00 EUR	Detail - 6SL3000-0CE33-3AA0
	6SL3000-1BE31-3AA0	SINAMICS BRAKING RESISTOR INPUT: 600 V DC OUTPUT: 125 KW/15 S 4,4 OHM;	0,00 EUR	Detail - 6SL3000-1BE31-3AA0
	6SL3000-2BE33-2AA0	SINAMICS/MICROMASTER PX MOTOR INDUCTOR FOR 3-PH 380-480 V, 50/60 HZ, 310 A AC DRIVES/POWER MODULES/ MOTOR MODULES;	0,00 EUR	Detail - 6SL3000-2BE33-2AA0
	6SL3200-0SM10-0AA0	Replacement door for PM240 Power Module frame size FSGX;	0,00 EUR	Detail - 6SL3200-0SM10-0AA0
	Brzdný modul	Brake module G120/PM240 - DC link voltage 510 … 720 V DC, Braking Module 50 kW/250 kW;	0,00 EUR	Detail - Brzdný modul
	6SL3362-0AG00-0AA1	Replacement fan for power module frame size FSGX (includes 2 replacement fan).Recommended: Even if only one fan on the Power Module is defective, it is advisable to replace both. In case of frame size FSB and FSC, the order quantity must be doubled.;	0,00 EUR	Detail - 6SL3362-0AG00-0AA1
