6SL3225-0BE35-5

Product design (mandatory options):

Documentation

complete catalogue: PDF Catalog D11.1 October 2010

complete catalogue: PDF Catalog Add-on D11.1 2009 CZ

manual: PDF CU230P-2 Operating instruction FW 4.4(ENG)

manual: PDF CU230P-2 Parameter Manual FW 4.4(ENG)

manual: PDF CU240B-2/CU240E-2 Operating instruction FW 4.4(ENG)

manual: PDF CU240B-2/CU240E2 Operating instruction FW 4.4(ENG)

manual: PDF PM250 Hardware Installation Manual

manual: PDF Intelligent Operator Panel Operating Instructions

manual: PDF Basic Operator Panel 2 - Operating Instructions

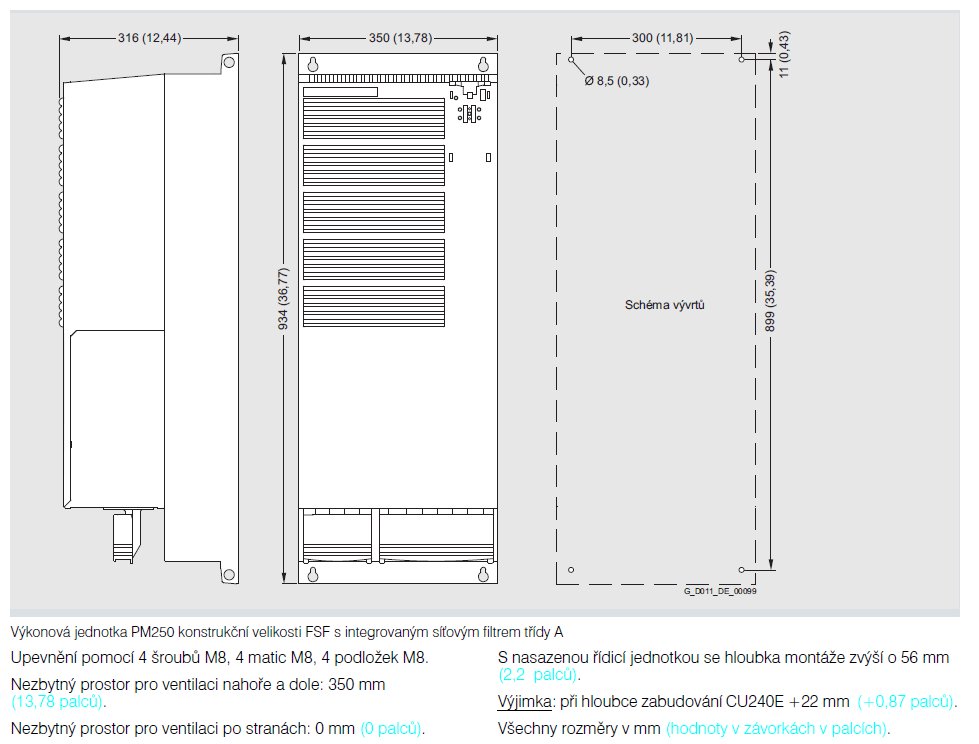

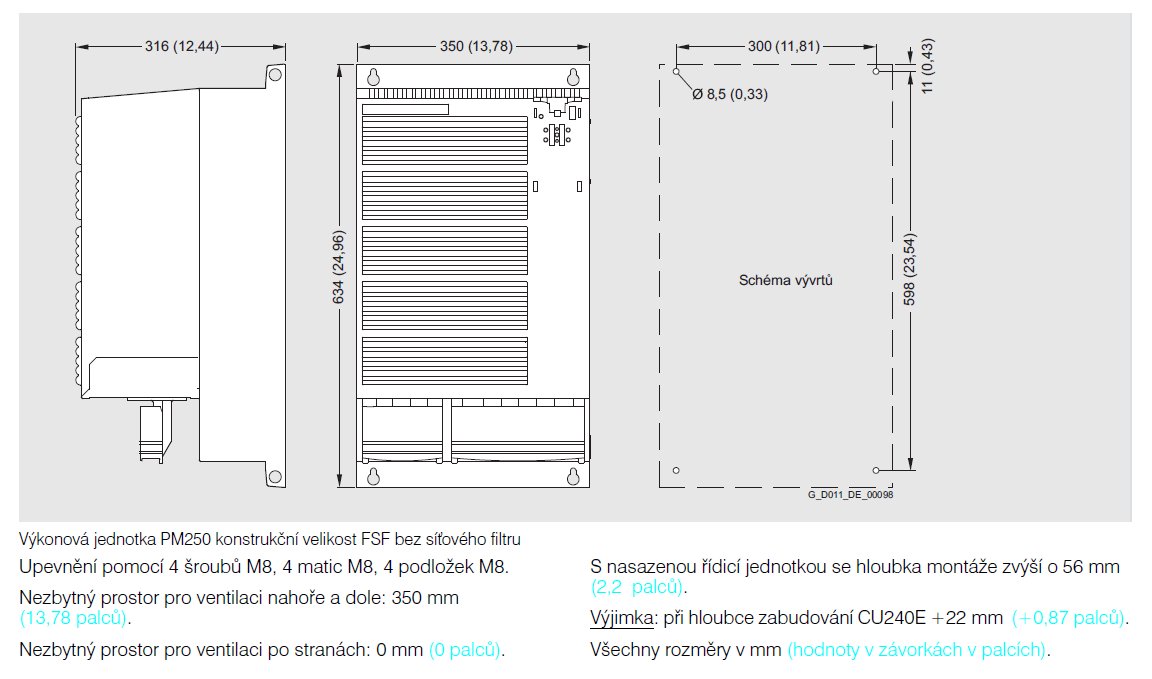

Dimensions

Description

Power module PM250 for Sinamics G120.

The PM250 Power Module features an absolutely unique technology which we have called “Efficient Infeed Technology”. This regenerative feedback capability of the PM260 Power Module in generating mode (electronic braking) means that energy is returned to the supply system and not destroyed in a braking resistor. This saves space in the control cabinet. The time-consuming dimensioning of the braking resistor as well as the wiring are eliminated. Generated heat is also reduced in the control cabinet.

The innovative circuit design used in Efficient Infeed Technology reduces supply harmonics. There is no need to use an optional line reactor at the supply infeed. This saves space and costs for engineering and procurement.

The PM250 Power Module is also suitable for safety-oriented applications. In conjunction with a Fail-safe Control Unit, the drive can be turned into a Safety Integrated Drive (see Control Units).

The permissible cable lengths between inverter and motor are limited. Longer cables can be used if output reactors are connected.

For frame size FSC of Power Module PM250 with an integral line filter of class A, an additional base filter of class B is available for achieving class B (see line-side power components).

The PM250 Power Modules with integrated class A line filter are suitable for connection to TN supply systems.

Accessories

Zatržené příslušenství bude vloženo do košíku s produktem

Akce	Název zboží	Atributy	Cena bez DPH	Proklik
	6SE6400-3TC15-4FD0	MICROMASTER 4 OUTPUT CHOKE 200-480 V 3AC 154 A STAND ALONE FS F - 0.033 MH;	386,09 EUR	Detail - 6SE6400-3TC15-4FD0
	6SL3200-0SF06-0AA0	Replacement fan for power module frame size FSF (includes 2 replacement fan).Recommended: Even if only one fan on the Power Module is defective, it is advisable to replace both. In case of frame size FSB and FSC, the order quantity must be doubled.;	0,00 EUR	Detail - 6SL3200-0SF06-0AA0
	6SL3200-0SM12-0AA0	Terminal Cover Kit for frame size FSF;	0,00 EUR	Detail - 6SL3200-0SM12-0AA0
	6SL3262-1AF0-0BA0	Shield Connection Kit. For PM240/PM250 Power Modules. Frame size FSF;	78,21 EUR	Detail - 6SL3262-1AF0-0BA0
