Description

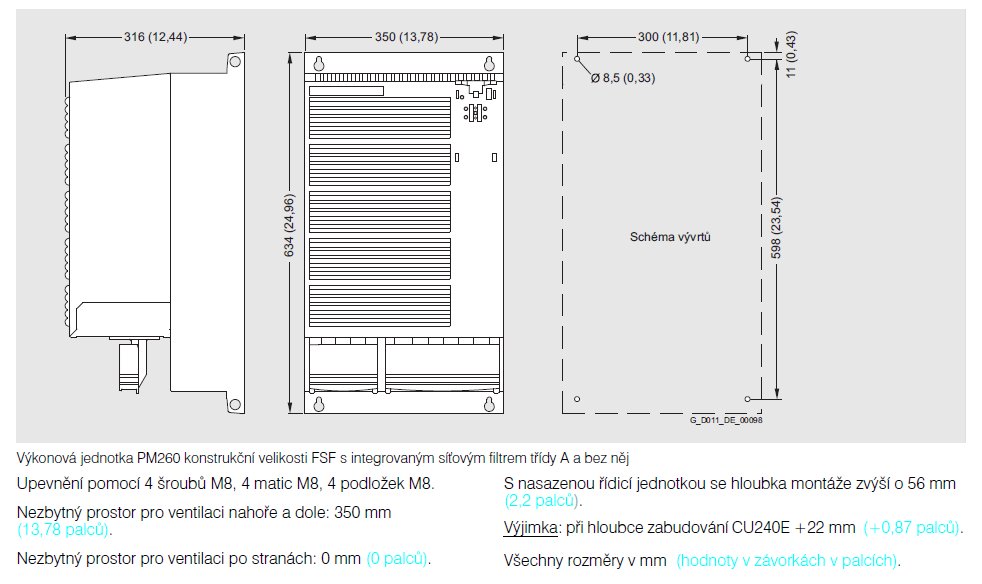

Power module PM260 for Sinamics G120.
The PM260 Power Module features an absolutely unique technology which we have called “Efficient Infeed Technology”. The
regenerative feedback capability of the PM260 Power Module in generating mode (electronic braking) means that energy is returned
so the supply system and not destroyed in a braking resistor.
This saves space in the control cabinet. The time-consuming dimensioning of the braking resistor as well as the wiring are eliminated. Generated heat is also reduced in the control cabinet.
The innovative circuit design used in Efficient Infeed Technology reduces supply harmonics. There is no need to use an optional line reactor at the supply infeed. This saves space and costs for engineering and procurement.
The PM260 Power Modules are also characterized by a higher rated pulse frequency combined with outstanding efficiency and an integral sine-wave filter. The integral sine-wave filter ensures that the inverter output current is sinusoidal and supports cable lengths of up to 200 m shielded and 300 m unshielded. An output
reactor is therefore not required. Furthermore, lower bearing currents and voltage stress are generated, which reduces stress on the motor.
The incorporation of SiC free-wheeling diodes – an absolutely unique innovation – makes the PM260 Power Module extremely compact. It is also highly resistant to thermal loading and runs very quietly thanks to its high pulse frequencies.
Standard motors can be used in conjunction with the PM260 Power Module. An increased dielectric strength of the winding system is not required.
The PM260 Power Module is suitable for safety-oriented applications.
In conjunction with a Fail-safe Control Unit, the drive can be turned into a Safety Integrated Drive.
The PM260 Power Modules with integrated class A line filter are suitable for connection to TN supply systems. Power Modules without integrated line filter can be connected to grounded (TN, TT) and non-grounded (IT) supply systems.
Configuration code: 6SL3225-0BH33-0
Standard delivery term: 7
Price: 5 261,70EUR | Price incl. VAT: 6 314,04EUR (Basic price excl. VAT5 261,70EUR)
Your price includes a discount of 12 % from the recommended price 5 979,20 EUR Excluding VAT.
