MOTOX Geared Motors Siemens / Flender
With MOTOX we are offering the complete range of geared motors. Our portfolio includes all of the usual gear unit types and covers all drive applications. Here you will find the optimum solution for each and every task. Not only this – you will have chosen gear units with higher rated torques than are generally available in the market place.
The geared motors can be supplied for a power range up to 200 kW and rated gear unit torques up to 20,000 Nm with helical, offset shaft and helical bevel gear units. Versions with helical worm gear units are available up to 11 kW and 1,590 Nm and motors with worm gear units up to 1.5 kW and 166 Nm.
It is not possible purchase the gearboxes through online e-shop. We are glad to send you either documentation or design of applicable configuration.
Complete catalogue download (EN, 16,75 MB).
Helical Gearboxes Motox
Helical geared motors are the conventional solution for your drive application. Helical gear units are coaxial units where the gear unit output shaft is in-line with the motor shaft. A solid shaft is always used as output shaft. Additional components – e.g. gear wheels or chain wheels – to transfer the force to the driven load are therefore required. Solutions utilizing helical geared motors are capable of an extreme variable speed range. In many cases, helical geared motors represent the most cost-effective solution for your drive task.
Basic Characteristics:
- Available for motor output up to 200 kW
- Output speed range from 0,06 to 1.088 rpm
- Output torque up to 20.000 Nm
- Both simple and rugged design with high efficiency
- High configuration capabilities of both gearbox and motor
- Available also type used for areas with explosion or inflammation risk (ATEX certification)
-
Foot and flange-mounting versions
-
Solid shaft
Parallel Shaft Gearboxes Motox
Parallel shaft geared motors are the modern version of coaxial geared motors. As a result of their compact and short design, they take up less space than helical geared motors. Parallel shaft geared motors can either have a solid shaft - or alternatively a hollow shaft as so-called plug-on gear unit. This means that the geared motor is optimally integrated into the driven machine. Additional components - e.g. such as gear wheels or chain wheels - to transmit the force to the driven machine are eliminated. Parallel shaft geared motors represent the space and weight-saving solution within the range of coaxial geared motors.
Basic Characteristics:
- Available for motor output up to 200 kW
- Output speed range from 0,05 to 365 rpm
- Transmission output up to 20.000 Nm
-
Foot or flange-mounting versions
-
Version with torque bracket
-
Solid or hollow shaft
-
Hollow shaft with key connection, shrunk-on disk, splines

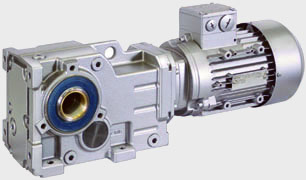

Bevel-Helical Gearboxes Motox
Helical bevel geared motors are angular geared motors where the gear unit output shaft is rotated through 90° to the motor shaft. Helical bevel geared units can either have a solid or a hollow shaft. Helical bevel geared motors represent the ideal solution for drive tasks where an angular geared motor with high power density is required with continuously high output torques.
Basic Characteristics:
- Available for motor output up to 200 kW
- Output speed range from 0,05 to 306 rpm
- Transmission output up to 20.000 Nm
-
Foot or flange-mounting versions
-
Version with torque bracket
-
Solid or hollow shaft
-
Hollow shaft with key connection, shrunk-on disk, splines
Helical-Worm Gearboxes Motox
Helical worm geared motors are the favorably-priced solution for drives with angular geared motors. The efficiency is significantly better than that of pure worm geared motors due to the implementation as helical-worm geared motors. Due to the worm gear stage, high ratios can be implemented within small envelope dimensions. Further, helical worm geared motors represent an extremely quiet drive solution. Helical worm geared motors represent the most cost-effective solution for angular geared motors in the lower torque range.
Basic Characteristics:
- Available for motor output up to 9,2 kW
- Output speed range from 0,05 to 148 rpm
- Transmission output up to 1.590 Nm
-
Foot or flange-mounting versions
-
Version with torque bracket
-
Solid or hollow shaft
-
Hollow shaft with key connection, shrunk-on disk, splines
Worm Gearboxes Motox
MOTOX worm geared motors are single-stage angular geared motors with CAVEX gearing. They represent the space-saving solution for simple applications in the low torque range as a result of their compact design with low height. They can be individually adapted to many drive situations due to the wide range of output shafts and mounting possibilities.
Basic Characteristics:
- Available for motor output up to 1,5 kW
- Output speed from 14 to 201 rpm
- Transmission output up to 224 Nm
-
Foot or flange-mounting versions
-
Version with torque bracket
-
Solid or hollow shaft
Gearbox selection:
We are glad to help you with your choice of the most suitable type of gearbox.
For your enquiry, please prepare following basic data, requirements:
- Required motor output or transmission torque output
- Required output speed (constant or speed range for converter control)
- Kind of driven machinery (e.g. stirrer, conveyor, machine tool, and so on)
- Required design of output shaft (hollow or solid, one ore double sided, output in the motor axis or upright to the motor axis,..)
- Drive fastening – foot, flange, moment arm, and so on)
- Operating position (horizontal, vertical, other)
- Possible other requirements ( explosion protection, increased radial or axial shaft loading, protection of drive for environment with aggressive effects, and so on)
On the base of your specification we compile tender proposal including dimension drawings, prices, terms of deliveries and detailed technical data. On the demand, we supply you also with 3D models in various formats, or also record of bearing life calculation on the base of given radial or axial forces on output shaft.
Gearboxes Motox Service
KVELB firm is accredited service partner for electro-gearboxes Motox (so called SERCO Partner Siemens).
Therefore, we can offer you not only after-guaranty and guaranty service, but also regular maintenance (e.g. oil, sealing and filters change according to prescribed service intervals).
