IE1 electric motors (standard efficiency) > Explosion-proof EEx de, EEx d (1MJ6, 1MJ7) > 2-poles (3000 RPM)

1MJ6070-2CA

Producer:SIEMENS


Delivery term (days):28 Guarantee period:12 months

Product specifications
power (kW)0,37
speed (rpm)2 750
efficiency
number of poles (pole)2
motor housingcast iron
protectionIP55
motor frame size71M
insulation classF
basic voltage (V)400/230V Y/D 50Hz
rated imput current (A)1,0/1,7
output torque (Nm)1,30
weight (kg)19
ATEX certificationII G EEx de IIC T1-T4
motor loadS1
bearings DE/NDE6202 Z C3 / 6202 Z C3

Compare a product


Configuration

Documentation

Description

Dimensions

Accessories

Product design (mandatory options):

Motor design

0 - IMB3 - footstanding design0,00 EUR
1 - IMB5 - flange design (large flange)18,53 EUR
2 - IMB14 - flange design (small flange)18,53 EUR
3 - IMB14 - flange design (medium flange)18,53 EUR
4 - IMV1 - flange design (large flange) with canopy for vertical position32,47 EUR
6 - IMB35 - combined design foot-standing with large flange23,14 EUR
7 - IMB34 - combined design foot-standing with small flange23,14 EUR
9 - other design - choose in configuration below0,00 EUR

Motor voltage

1 - 400/230V Y/D 50Hz, 460VY 60Hz (basic voltage up to 3kW)0,00 EUR
3 - 500VY 50Hz0,00 EUR
6 - 400/690V D/Y 50Hz, 460VD 60Hz (basic voltage from 3kW)0,00 EUR
9 - other voltage - choose in config. bellow0,00 EUR

Product configuration (voluntary options):

thermal protection

Selected:
- basic design - no thermal protection0,00 EUR
A11 - 3x PTC thermistor in windings97,42 EUR
A12 - 6x PTC thermistor in windings164,97 EUR
A15 - 4xPTC or 3xPTC thermistor for converter-fed operation111,91 EUR
A16 - 8xPTC or 6xPTC thermistor for converter-fed operation185,27 EUR

other voltages

Selected:
- standard voltage (acc. to motor design)0,00 EUR
L1C - 3AC 50Hz 415VY7,97 EUR
L1D - 3AC 50Hz 415VD7,97 EUR
L1R - 3AC 50Hz 220VD/380VY7,97 EUR
L1R - 3AC 50Hz 380VD/660VY7,97 EUR
L2A - 3AC 60Hz 220VD/380VY (50Hz power output)7,97 EUR
L2B - 3AC 60Hz 220VD/380VY (60Hz power output)7,97 EUR
L2C - 3AC 60Hz 380VD/660VY (50Hz power output)7,97 EUR
L2D - 3AC 60Hz 380VD/660VY (60Hz power output)7,97 EUR
L2L - 3AC 60Hz 575VY (60Hz power output)7,97 EUR
L2M - 3AC 60Hz 575VD (60Hz power output)7,97 EUR
L2Q - 3AC 60Hz 440VY (50Hz power output)7,97 EUR
L2R - 3AC 60Hz 440VD (50Hz power output)7,97 EUR
L2S - 3AC 60Hz 460VY (50Hz power output)7,97 EUR
L2T - 3AC 60Hz 460VD (50Hz power output)7,97 EUR
L2U - 3AC 60Hz 575VY (50Hz power output)7,97 EUR
L2V - 3AC 60Hz 575VD (50Hz power output)7,97 EUR
L2W - 3AC 60Hz 440VY (60Hz power output)7,97 EUR
L2X - 3AC 60Hz 440VD (60Hz power output)7,97 EUR

regreasing device

Selected:
- basic design0,00 EUR

test certificates

Selected:
- without test certificates0,00 EUR
B02 - inspection certificate 3.1 in acc. with EN10 2046,99 EUR

national certificates and standards

Selected:
- without national certificates0,00 EUR
D01 - CCC (China compulsory certification)9,86 EUR
K30 - VIK design22,41 EUR

protection degree

Selected:
- basic design0,00 EUR
K50 - IP65 degree of protection37,69 EUR
K52 - IP56 degree of protection (non-heavy-sea)63,49 EUR

terminal inputs position

Selected:
- basic design0,00 EUR
K83 - rotation of the connection box through 90°, entry from DE7,25 EUR
K84 - rotation of the connection box through 90°, entry from NDE7,25 EUR
K85 - rotation of the connection box through 180°0,00 EUR

shaft extension

Selected:
- basic design0,00 EUR
K16 - second standard shaft extension20,61 EUR
K17 - Oiltight radial sealing ring15,48 EUR

rotor balancing

Selected:
- basic design0,00 EUR
K02 - vibration severity grade B58,57 EUR

windings heating

Selected:
- basic design - no heating0,00 EUR
K45 - anti-condensation heaters for 230V108,14 EUR
K46 - anti-condensation heaters for 115V108,14 EUR

windings and insulation, increased ambient tempera

Selected:
- basic design0,00 EUR
C19 - increased air humidity 30 - 60g water per m3 of air144,39 EUR
C26 - increased air humidity 60 - 100g water per m3 of air173,96 EUR

connection box Ex protection

Selected:
- basic termail box protection (EEx e IIC)0,00 EUR
K53 - terminal box incerased protection EEx d IIC216,87 EUR

other motor design

Selected:
- motor design acc. to standard design selection0,00 EUR
M1F - IMV5 with canopy13,97 EUR
M2A - IMV18 with canopy (small flange)32,47 EUR
M2B - IMV18 with canopy (non-standard flange)32,47 EUR
M2C - IMB34 with non-standard flange23,14 EUR

Documentation

complete catalogue: PDF Explosion-proof motors (EN)

complete catalogue: PDF standard motors up to size 450 (EN)

Production datasheet: PDF Overview of Siemens ex-proof electric motors production lines (CZ)

manual: PDF manual - full version (CZ)

manual: PDF manual - full version (EN)

Dimensions

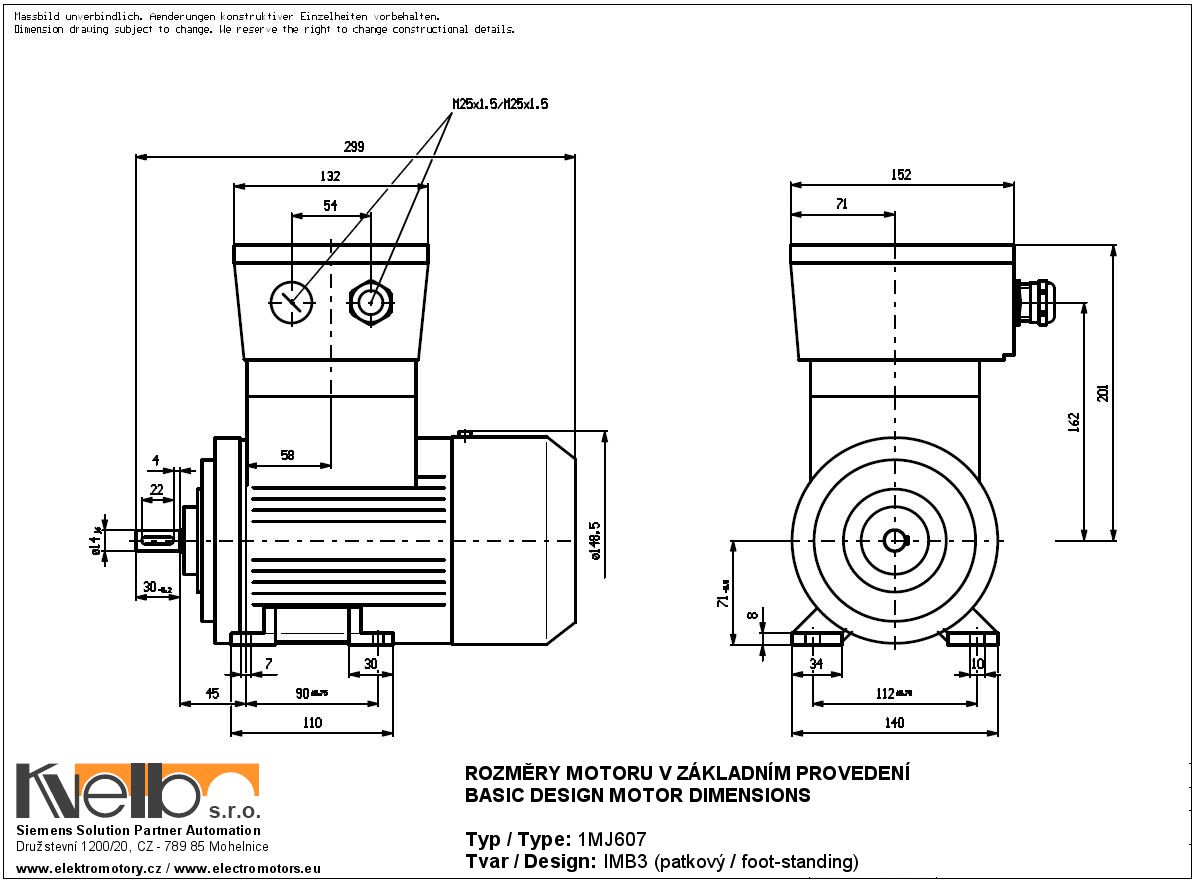

1MJ607 IMB3 (foot-standing) dimensions
1MJ607 IMB3 (foot-standing) dimensions

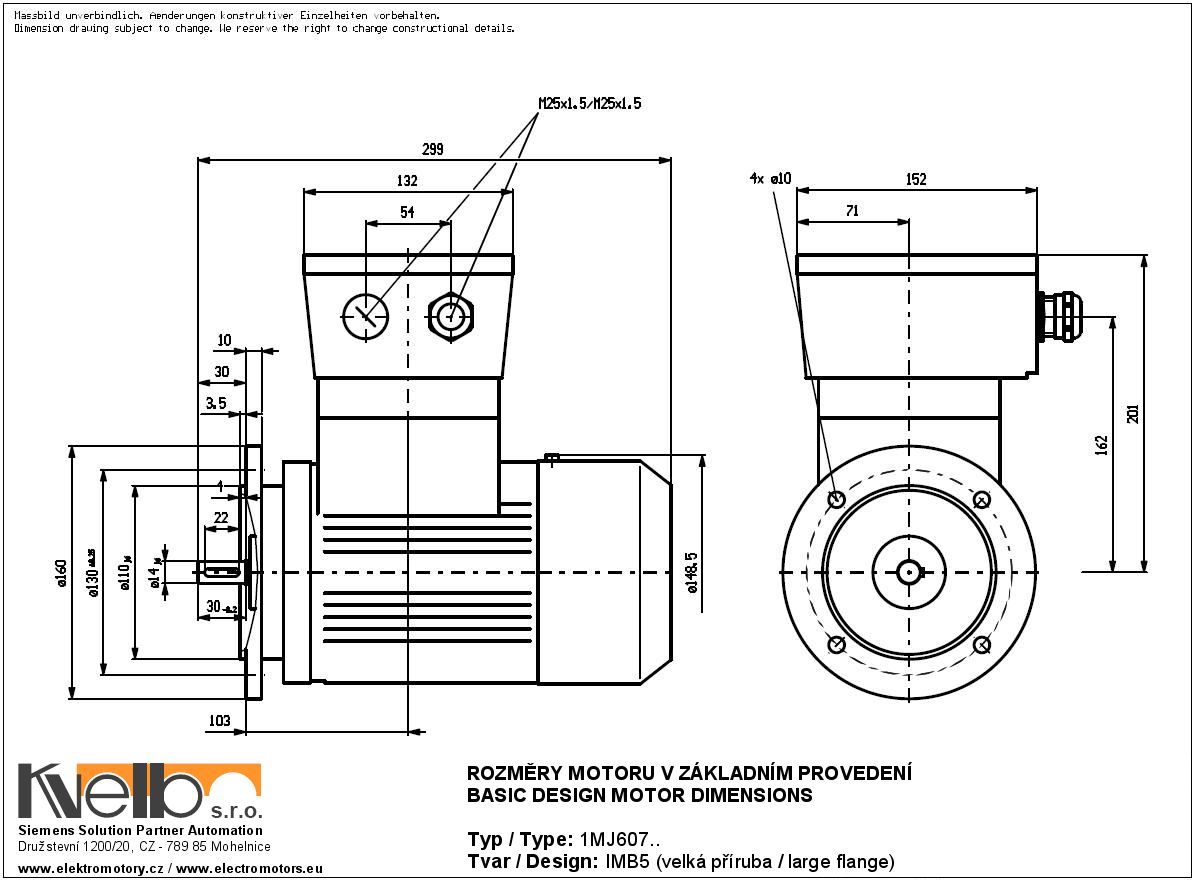

1MJ607 IMB5 (large flange) dimensions
1MJ607 IMB5 (large flange) dimensions

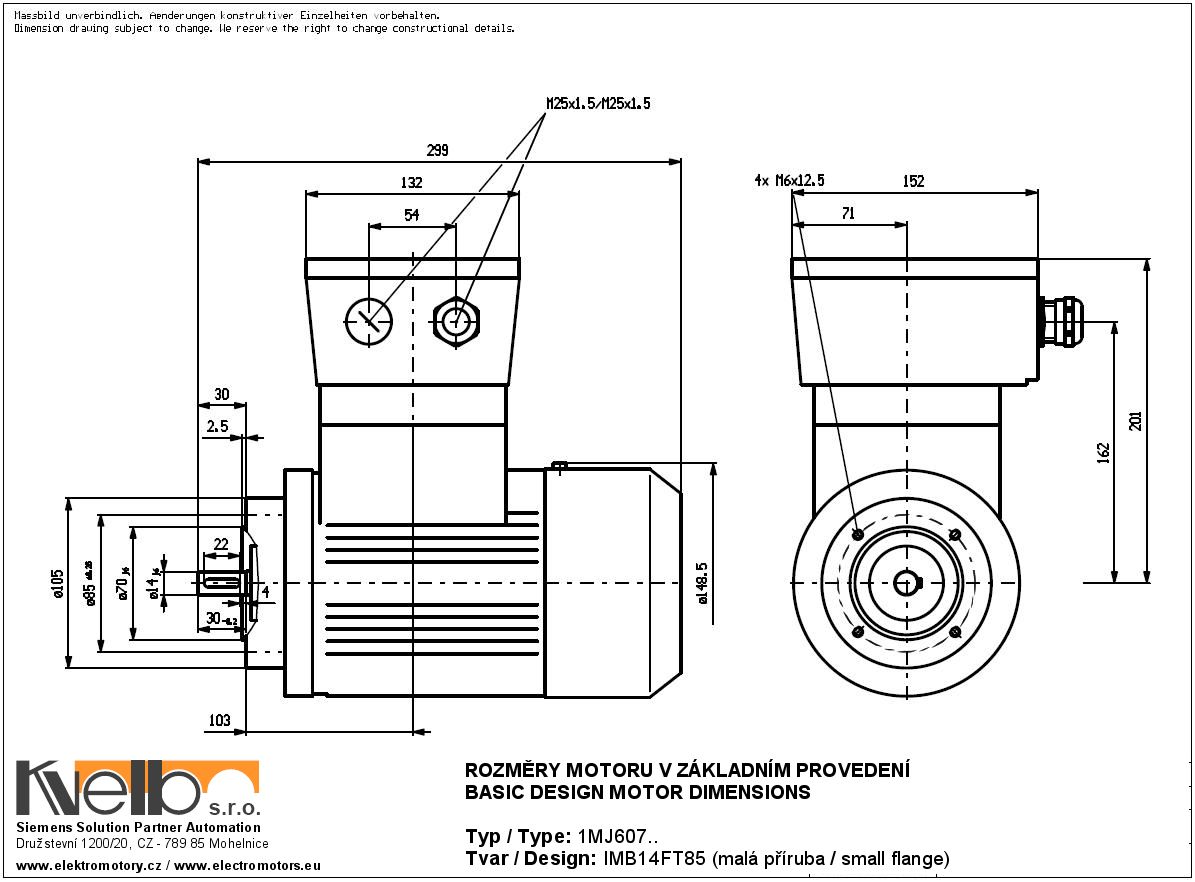

1MJ607 IMB14FT (small flange) dimensions
1MJ607 IMB14FT (small flange) dimensions

Description

Three-phase squirrel-cage ex-proof motor for zone 1. Protection degree EEx de IIC T4 or EE x d IIC T4 (with option K53). Suitable for converter driven operation (only with option A15 - 4xPTC thermistor or A16 - 8x PTC thermistor installed).
Produkt nemá přiřazeno žádné příslušenství

Configuration code: 1MJ6070-2CA

Standard delivery term: 28

Price: 317,16EUR | Price incl. VAT: 380,59EUR (Basic price excl. VAT317,16EUR)

Your price includes a discount of 21 % from the recommended price 401,46 EUR Excluding VAT.
